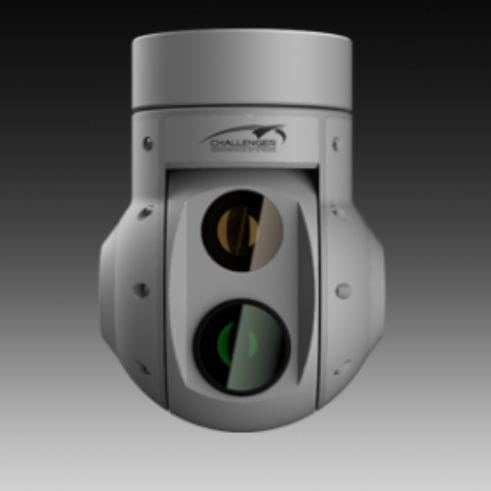

2-axis gimbal EXSS-170

for droneswith zoomwith camera

Gimbal system 2 axis gimbal with high bandwidth direct torque drive Daylight video camera * PANASONIC GP-MH330 Daylight camera field of view horizontal – 65.1° to 2.3°vertical – 38.4° to 1.4° Minimum illumination 0.4 lx (color), 0.03 lx (B/W) Infrared imager core * TC 640, uncooled module with shutter Infrared imager lens 50 mm atermalized lens Infrared imager field of view 18° x 14° Pan/Tilt range Unlimited – slip ring on both axes Maximum slew rate Up to 300 °/sec Feedback position resolution * 0.072° or 1.25 mRad De-stabilization Less than 50 uRad (1σ) Control interface 1x RS232, 1x auxiliary RS232, up to 3x GPIO with 3.3V levels for external devices control, like video switching, gimbal deployment mechanics control, etc. Video output Daylight camera – 1x component Y Pb Pr up to 1080i or ITU472-3 (PAL)Infrared imager – 1x ITU472-3 (PAL) Both signals (daylight and IR) are available at the same time on the external connector (i.e. no video switching inside gimbal) Weight 3.5 kg Working voltage 24-30 V Power Less than 20 W Control interface RS232, 115200 bps, 8N1, proprietary binary protocol External connector * PC10TB, or customized Description EXSS-170 is a gyro stabilized gimbal system, containing FULL HD daylight camera with 30x optical zoom, and infrared imager with 640*480 resolutions. 2 axis gyro stabilized gimbal is specially developed for applications on different kind of unmanned aerial vehicles, with fixed or rotary wing. All control electronics, required for gimbal operation, is fit inside the unit shell. Platform is controlled by high bandwidth, purpose built coreless direct torque motors, with gearless drive,
