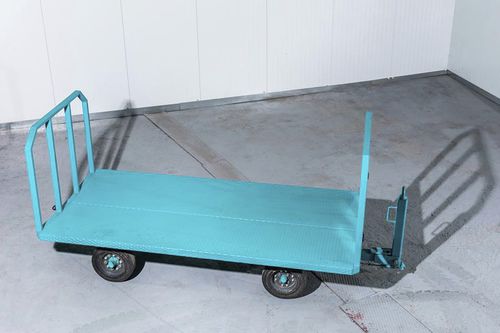

Airport terminal luggage trolley CPE

4-wheelopen

This equipment usually goes in a convoy of 5 units loaded and 6 units empty, and its function is to transport luggage from the plane to the logistics warehouse or vice versa. They are equipped with a strap on both sides, to hold the suitcases and prevent them from falling during the journey. The wheels are solid superelastic. They have a security system so that the operators cannot invade the space between the convoys. • Loading platform. Overall length: 2,735mm. Length between stops: 2,495 mm. Overall width: 1,600/1,300 mm. Floor to floor height of the platform: 540 mm. • Other data. Extended tiller total length: 4,100 mm. Retracted drawbar total length: 3,380 mm. Total width: 1,600 mm. Wheelbase: 1,500 mm. Track width, front and rear: 1,000 mm. Maximum speed towed 15 km/h Weight (Tare): 435 kg.
