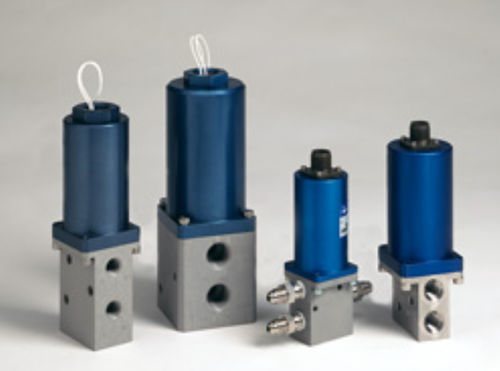

Aircraft solenoid valve SV10-30
for gas3-way2-way

aircraft solenoid valve
aircraft solenoid valve
aircraft solenoid valve
aircraft solenoid valve
Add to favorites
Compare this product


Characteristics

Applications
for aircraft
Media
for gas
Ports/positions
2-way, 3-way
Function
normally closed, normally open
Other characteristics
plug, bidirectional
DN

6.35 mm, 9.52 mm, 12.7 mm
(0.25 in, 0.375 in, 0.5 in)

Voltage

Max.: 220 V

Min.: 12 V

Pressure

Max.: 6,000 psi

Min.: 0 psi

Temperature range

Max.: 68 °C
(154.4 °F)

Min.: -54 °C
(-65.2 °F)

Description

Zéro Leakage Bi-Directional Flow Versatile — 3-way 2-position, 2-way Normally Closed, or 2-way Normally Open Balanced Poppet Design 303 Stainless Steel, Brass or Aluminum Construction Minimum Current Required Rapid Response Explosion Proof Per MIL-STD-810B High Pressure Direct Acting Medium Flow Capacity THE ENERGIZED POSITION With electrical energy applied to the coil, the poppet is pulled up against the normally open seat of the valve. In this condition, flow is allowed in either direction through Port B and Port C with Port A isolated. THE DE-ENERGIZED POSITION with the valve in a de-energized position, flow is allowed in either direction through Port A and C with Port B isolated. Technical Data Materials of Construction Body — 303 Stainless Steel, Brass or Aluminum Seat — Nylatron, Polyimide (Vespel), or Kel-F
