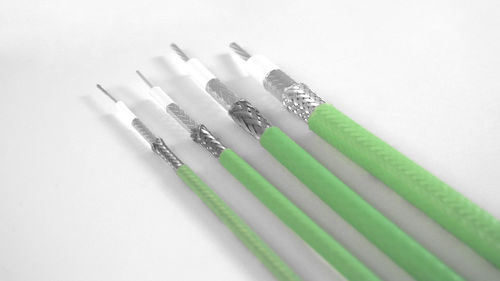

Airplane cable PFLX series
datacoaxialhigh-temperature

airplane cable
airplane cable
airplane cable
airplane cable
Add to favorites
Compare this product


Characteristics

Applications
for airplane
Type
data
Format
coaxial
Protection
high-temperature
Configuration
coaxial
Other characteristics
triaxial
Temperature range

Max.: 200 °C (392 °F)

Min.: -55 °C (-67 °F)

Description

Both cables are approved by the Federal Aviation Administration (FAA) and original equipment manufacturers. Though suited for different needs, they’re as much as 75 percent lighter than many radio guide (RG) and MIL-C-17 cables – while delivering superior electrical performance. PFLX: Resistant to kinking and hydraulic fluids, these cables offer excellent shielding effectiveness and flexibility with low smoke and zero halogen at high temperatures TFLX: These ruggedized cables can withstand temperatures from -55° C to 150° C, and the surrounding jackets are temperature rated to 200° C We test our cables and connectors according to several performance metrics, including Voltage Standing Wave Ratio (VSWR), insertion loss, time delay and phase angle at frequencies up to 20 GHZ on our Vector Network Analyzer. Our cables also meet the following performance requirements: FAR Part 25.869, App. F Part 1 (a)(3) for flammability Altitude MIL-STD-810C High Temperature MIL-STD-810C Low Temperature MIL-STD-810F Thermal Shock MIL-STD-810C Temperature Altitude MIL-STD-810C Humidity MIL-STD-810C Fungus MIL-STD-810C Salt Fog MIL-STD-810F Dust MIL-STD-810C Static Load MIL-STD-810F Vibration MIL-STD-810F Shock MIL-STD-810F Explosion MIL-STD-810F Boeing, FAA and Military Specification
