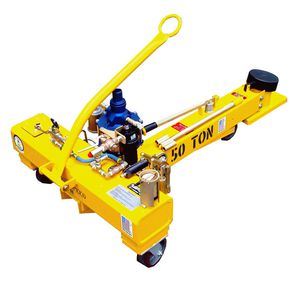

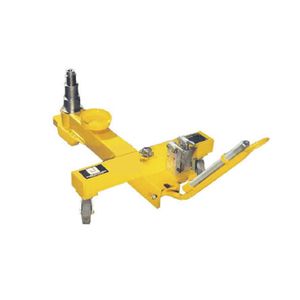

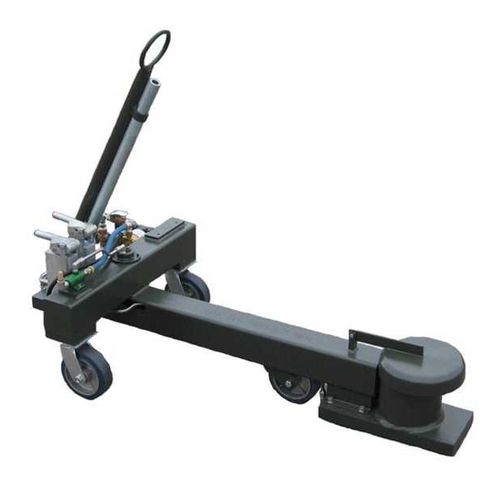

Aircraft jack 3507-56
hydraulicsingle-axis

aircraft jack
aircraft jack
Add to favorites
Compare this product


Characteristics

Applications
for aircraft
Technology
hydraulic
Type
single-axis
Lifting height

Min.: 178 mm
(7 in)

Max.: 572 mm
(23 in)

Description

Our Single-Acting Alligator Axle Jack is designed for normal Wheel/Tire and Brake Changes. The cylinder head is mounted on a T-frame with three casters and comes with Manual and Air Powered Pumping Units. It is also available with an Optional Pressure Gauge Assembly. The Evac-U-Tract� feature utilizes the air or nitrogen supply that is being used to raise the jack. Once activated, the air supply automatically retracts the ram back down inside the cylinder assembly. This retraction will facilitate the easy removal of the axle jack out from under the aircraft jacking point. This same retraction permits the use of the cylinder rain cover which protects the cylinder assembly from physical and environmental damage.
