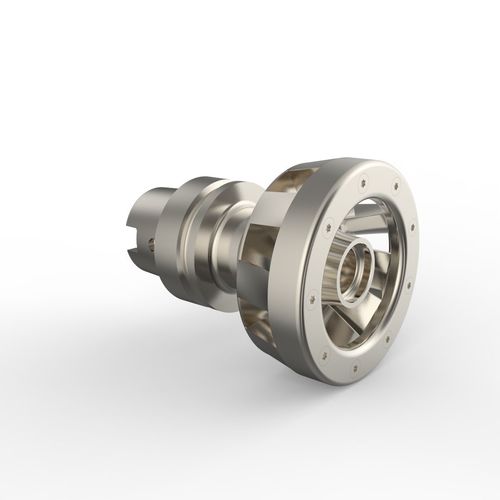

Milling tool holder AER-41A
cuttingfor the aerospace industry

milling tool holder
milling tool holder
milling tool holder
milling tool holder
milling tool holder
milling tool holder
milling tool holder
milling tool holder
Add to favorites
Compare this product


Characteristics

Applications
milling, cutting
Other characteristics
for the aerospace industry
Length

123 mm, 131 mm
(4.84 in, 5.16 in)

Rotational speed

24,000 rpm
(150,796.45 rad.min-1)

Diameter

26 mm, 73 mm
(1.02 in, 2.87 in)

Description

For Nesting cabinet/MDF and Routing with straight and profiled tools. The Aerotech Hydro is recommended for high production and high quality requirements. Advantages The hydraulic clamping system offers security, precision and high production levels. Ideal for applications demanding high quality at high speed. The Plus version with the patented Faceplate grill is ideal for those cutting operations that produce large pieces of debris and off-cuts. Reduction sleeves available as accessories to adapt tools with different shank size. Technical features Machine interface: HSK-F 63 Clamping system: Hydraulic (with reduction sleeves) Run-out: <0,003 mm x 2.5 D Torque: 250 Nm (AER-41A) / 185 Nm (AER-55F) Balance: G<2,5 at 25.000 rpm Weight: 2,3 - 2,5 kg (without tool) Flange: Standard flange or patented Faceplate grill
