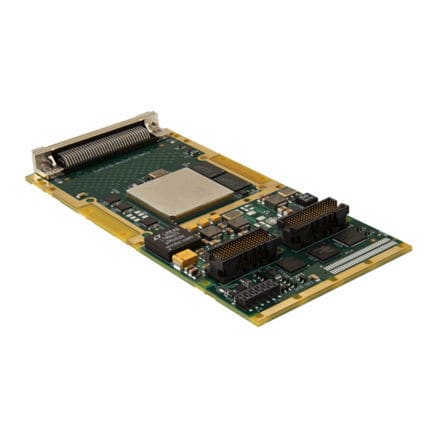

Aircraft circuit board XF07-523

The XF07-523 is a rugged Kintex 7 FPGA-based XMC with LVDS data I/O. The combination of direct high-speed I/O ports and FPGA processing makes the XF07-523 ideal for demanding applications including radar, imaging and test equipment across commercial and defense market spaces. The XMC form-factor is ideal to SWaP constrained platforms such as UAVs and fighter aircraft. The XF07-523 is built around a user programmable AMD Kintex-7 325T FPGA resource that is supported by high-speed DDR3 memory directly connected to the FPGA. The XF07-523 supports two banks of 128M x 16-bit DDR3 SDRAM and each memory bank supports read or write bandwidths up to 2.5 Gbytes/sec. The FPGA configuration images can be stored in the Flash memory which can be updated and controlled by the host CPU using the PCI Express® (PCIe) interface. Curtiss-Wright’s FusionXF development kit includes software, HDL and utilities complete with examples for using the XF07-523. A range of environmental requirements are addressed by the XF07-523 including commercial, air-cooled rugged and conduction-cooled. Digital IO - Front panel (air cooled only): - 32x LVDS PMC P14/XMC P16: - 32x LVDS (P14) or 20x LVDS +38 SE (P16) FPGA - Type - AMD Kintex 7 K325T, speed grade 2 Main Memory - Size/Type - 2x 128M x 32/DDR3 SDRAM Software/HDL - Tools - FusionXF for VxWorks or Linux
