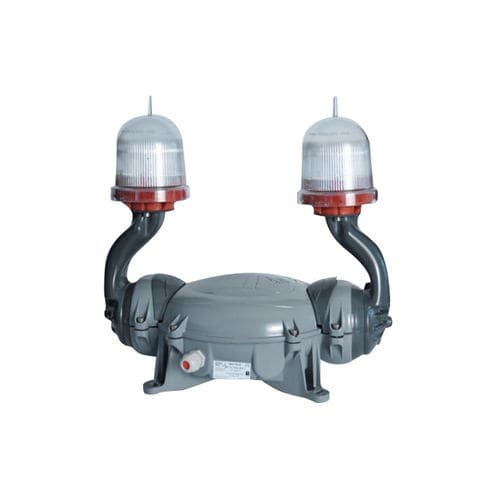

Position beacon LEDEO TWINY

obstructionfor airportLED

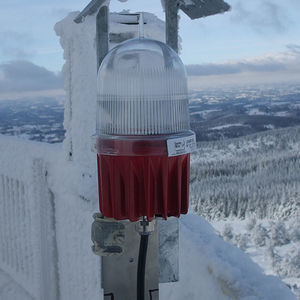

Our range of Low Intensity Lights can be separated in two categories: Type A (10Cd) and Type B (32Cd). Our LEDEO beacons are mainly equipped with Led technology, nonetheless we can also supply low-intensity lights working with Neon technology. The Led technology allows us to develop sturdier, watertight (IP66) and very low consuming lights with a long lifetime (100 000 hours). Our Low Intensity Led Systems are all certified and homologated by the Civil Aviation and can be installed on any obstacle inferior to 45M tall (Pylons, Civil Engineering Structures, Buildings, Cranes, Lighting Masts on Airports). Our products also benefit from integrating important options such as the photocell when a night beaconing is needed, and the dry contact. Moreover, for a complete solution, Delta Box offers Power Supply Cabinets, Uninterruptible Power Supplies (UPS) and Solar Power Supplies. Rules concerning aircraft beaconing are established by the ICAO (Annex 14, Chapter 6). Low intensity beacons can be installed on structures up to 45 meters of height. For taller obstacles it is required to install Medium-Intensity Lights at the top and Low-Intensity Lights Type B at the intermediate level. According to the rules, an uninterruptible power supply cabinet has to be installed to insure a 12-hour beaconing in case of power supply failure. In the table below are shown the different references of Low Intensity Lights that we produce. By clicking on the image you will have instant access to the technical file of the product.
