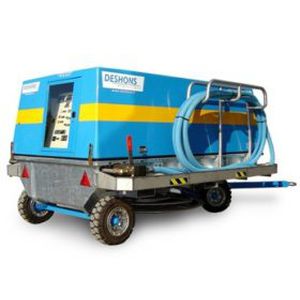

Mobile hydraulic power unit DH 1859 – DH 1859TH
for aircraft

mobile hydraulic power unit
mobile hydraulic power unit
Add to favorites
Compare this product


Characteristics

Type
mobile
Applications
for aircraft
Pressure

Max.: 5,000 psi

Min.: 100 psi

Flow

Max.: 60 us gal/min
(227 l/min)

Min.: 0 us gal/min
(0 l/min)

Tank capacity

Max.: 80 gal

Min.: 0 gal

Description

DH 1859 – DH 1859TH Hydraulic fluid type Skydrol HYJET V 210 l/min – 350 bar Single power pack / single or dual feed Option : Diesel driven Adjustable flowrate from 0 to 60 USGPM Adjustable pressure : from 100 to 5000 psi Maximum pressure : 5000 psi (at 55 USGPM) Max flow x pressure : 70 000 l/min x bar Electrical motor : 132 kW Total tank capacity : 80 US Gallons As per NAS 307-110 standard DIMENSIONS Length with drawbar raised : 2850 mm / 112.2 in Length with drawbar in towing position : 3900mm / 153.5 in Width : 2130 mm / 72 in Height: 1600mm / 63 in Weight : 2300 KG / 5362 Lbs Connecting hoses length : 10 m / 394 in Electrical cable length : 15 m / 590 in
