Towed refueller DC 6540
for airport

towed refueller
towed refueller
Add to favorites
Compare this product


Characteristics

Type
towed
Domain
for airport
Tank capacity

6,500 l
(1,717.12 gal)

Fuel flow

Min.: 14 m³/h
(494.40533 ft³/h)

Max.: 36 m³/h
(1,271.328 ft³/h)

Description

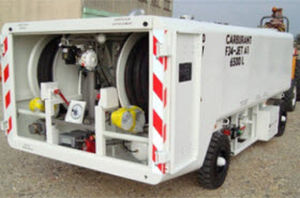

DC 6540 Fuel used : standard kerosen JET A1 / TR0 / F34 / F35 type The mobile refueler DC-6540 makes it possible to make tests on aircrafts fuel systems. It allows the filling and the performances checking It allows the simulation of failure cases It allows fuel transfers from the aircraft to the refueler It is particularly adapted for the tests on military and civil aircrafs including the Rafale. Power pack : Adjustable flowrate from 14,4 to 36 m3/h Adjustable flowrate from 3 to 6 bar Electrical motor ATEX class of 11 KW, with frequency switch Filtration at 20µ absolute fitted with a visual indicator of filling Transfers : Fixed flowrate: 15 m3/h Pressure : 3 bars Electrical motor ATEX class of 2,2 KW Useful maximum tank capacity : 6500 Liters
