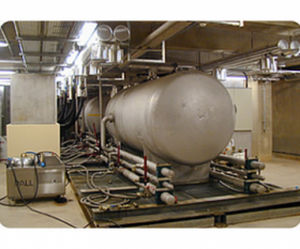

A380 (U1)
Hydraulic fluid type Skydrol HYJET V
9 power pack pumps of 160 KW each developing 400 bars at 150 L/min
2 tank of 7000 Liters
1 inox pipes network placed in galleries (of more than 1km long) serving 7 aircraft workstations
12 blocs de régulation Débit/Pression: 250 L/min - 350 bars
8 pressure & fold control manifolds flow/pressure : 200L/min – 210 bar
6 connecting jack manifolds : 50 L/min - 100 bars
2 postes mobiles avec collecteurs pour PHR et dérive
6 outside areas packed of 12 rewinders, 12 hydraulic connecting manifolds and 6 remote control console.
Regulation, PLC program an all cables integrated
