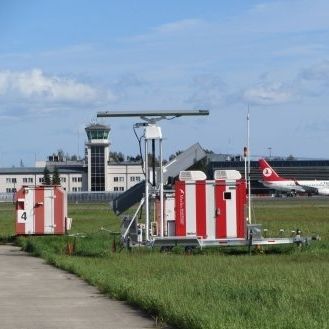

OverviewDeTect’s MERLIN™ Aircraft Birdstrike Avoidance Radar (ABAR) is a production True3D bird radar system for bird-aircraft strike hazard management. Introduced in 2003, MERLIN provides real-time detection, tracking and alerting of hazardous bird and drone activity at commercial airports, military airfields and training ranges. The MERLIN platform is field-proven with a long operational record and extensive installations worldwide.
Key capabilities- Real-time monitoring of bird and drone activity around runways and flight paths
- High detection accuracy for small targets and large flocks across wide airfield environments
- Automated birdstrike risk alerts (displayed as LOW, MODERATE or SEVERE)
- Early warning to enable response before birds enter critical flight corridors
- Operational decision support via visual dashboards and strike-hazard reports
- Continuous day-and-night operation in rain, fog, snow and low light
- Flexible deployment: fixed and mobile/skid units, scalable multi-sensor networks
Integrated hardware + softwareMERLIN is delivered as a hardware and software solution. The radar sensor (solid-state S‑band Doppler) is integrated with DeTect’s operational intelligence platform (HARRIER) and the MERLIN Advisor software. Sensor data is fused, processed and presented as real-time dashboards, geofenced runway risk calculations, automated alerts, camera handoff for verification, recorded visual evidence and standardized reports for BASH management.
Detect • Identify • Act- Detect: High-resolution S‑band Doppler scanning provides continuous 360° True3D coverage and dedicated runway/approach corridor scanning to detect birds, flocks and drones from ground level to aircraft operational altitudes.
- Identify: Military-grade tracking algorithms, clutter suppression and target filtering differentiate birds, drones, aircraft and vehicles to reduce false positives and identify genuine hazards.
- Act: MERLIN Advisor continuously calculates birdstrike risk and delivers simultaneous visual, audible and text alerts to controllers, airfield managers and bird-control teams to support timely mitigation actions.
Operational design & data handlingHARRIER user interface provides sensor fusion, role-based access, automated camera handoff and standardized interfaces for downstream systems. Key operational characteristics include on-premises data retention (no mandatory cloud routing), encrypted communications (TLS), role-based access control, heartbeat monitoring, audit logging of alerts and operator actions, and low sensor-to-alert latency (designed under 30 seconds). All detections and events are written to a MERLIN SQL database for playback, archiving and reporting; optional incident recorder retains 48–72 hours of detailed radar data. Data export to GIS and Google Earth is supported.
Applications and deploymentMERLIN ABAR is used in commercial aviation, military aviation, wind-energy bird monitoring and mitigation (BMMS), security/surveillance and drone detection (DroneWatcher™ / C-UAS). Systems are available as fixed installations or mobile/mission-deployable units. MERLIN has been evaluated and certified for real-time tactical flight-safety use by US government agencies and is operationally deployed at airports and military airfields worldwide.
Product documentationProduct datasheets are available for ABAR (Commercial and Military) and for combined TRUE3D BDR-DDR materials (product literature and technical datasheets).
Caractéristiques / spécifications techniques- Radar type: Solid-state S‑band Doppler radar (True3D® architecture)
- Coverage: 360° True3D airspace coverage with dedicated runway/approach corridor scanning
- Detection: Designed to detect birds, flocks and small airborne targets and to support optional drone detection (BDR-DDR and RF detection upgrades)
- Software: MERLIN Advisor (risk calculation and alerting) + HARRIER Integrated Airspace Awareness & Threat Response System (sensor fusion and GUI)
- Alerting: Automated LOW / MODERATE / SEVERE risk alerts; simultaneous visual, audible and text notifications
- Data storage: SQL database; optional incident recorder (48–72 hours of full radar data); export to GIS/Google Earth
- Security & reliability: On-premises operation, TLS encryption, role-based access control, audit logging, heartbeat/fault monitoring
- Deployment types: Fixed installations, skid/mobile units, mission-deployable configurations; multi-sensor network support
- Certifications/operational record: US government evaluation/certification for tactical flight safety use; in operational use at commercial airport control towers; USAF ATTLA certified mobile configurations
- Operational record: Over 1,000 MERLIN systems installed worldwide and more than 15 million hours of logged operating time
- Integration: Interface Control Documents (ICDs) and relay interfaces for third-party system interoperability (normalized detection and alert envelopes)
