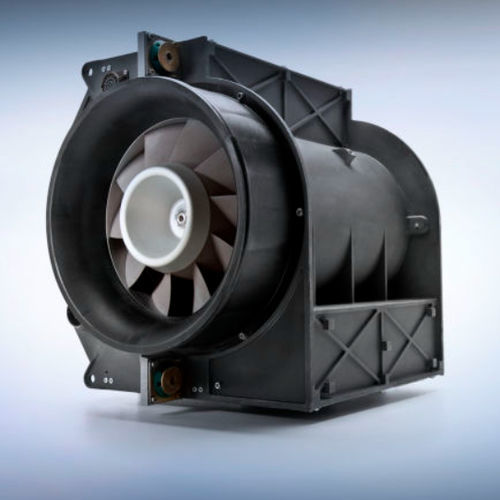

Ventilation fan
axialfor aircraft cabinsfloor-mounted

ventilation fan
ventilation fan
Add to favorites
Compare this product


Characteristics

Type
ventilation, axial
Applications
for aircraft cabins
Installation
floor-mounted
Air flow

1,100 l/s
(290.59 us gal/s)

Description

The Diehl Aviation portfolio comprises electrically driven variable High Speed Fans with a wide frequency range of power supply that recirculate air from the cabin to the aircraft’s air-conditioning system. Our devices can reach a rotational speed up to 40.000 rpm with a power consumption of 15 kVA and a volume flow of 1.100 l/s. Most are configured as an axial flow in-line fan with a 4-pole permanent magnet synchronous brushless motor. The embedded software controls the fan speed, communicates with the aircraft ECS system via CAN Bus, and provides health and failure monitoring features.
