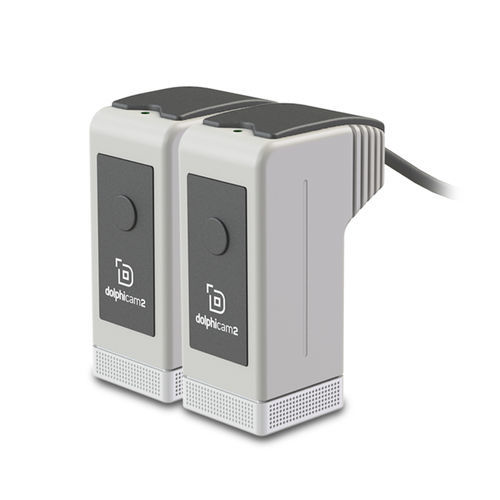

Direct-contact ultrasonic transducer MxTTU
delay linewith delay line

direct-contact ultrasonic transducer
direct-contact ultrasonic transducer
direct-contact ultrasonic transducer
Add to favorites
Compare this product


Characteristics

Use
direct-contact
Technology
delay line
Other characteristics
with delay line
Frequency

Max.: 10,000 kHz

Min.: 1,500 kHz

Description

Our Matrix Through Transmission Ultrasound (MxTTU™) system provides the user with a larger viewing area without sacrificing resolution or rate of evaluation. DESCRIPTION Using our core range of products, the benefits of the dolphicam2 and our MxTTU™ system provides the user with a larger viewing area without sacrificing resolution or rate of evaluation. MxTTU™ is the only portable and practical device in the world that can offer the conclusiveness of C-scans and simplified MxTTU™ evaluation. This means you can achieve the in-depth, high-quality diagnostics of traditional methods, in an easy-to-use, flexible handheld device. TECHNICAL DETAILS A benefit of performing MxTTU™ versus Pulse-Echo (PE) is the inspection of materials with high attenuation properties, such as multiple bond layers, honeycomb cores, or foam cores. These types of materials hinder the sound propagation from travelling to the back wall and back to the receiver with sufficient measurable energy. In addition, the orientation of the material interfaces and indications affect the sound wave propagation which reduces signal response when using PE. One of the most valuable aspects of the dolphicam2 MxTTU™ system is the ability to toggle between MxTTU™ and PE without having to use another system or changing transducers. The user will have the ability to validate their findings, by quickly switching to PE mode to provide depth and size of the indication with a simple adjustment within the software. Can be used with a foot pedal for hands-free operation SIZE AND WEIGHT TRM's: Width 40mm / 1.6" Length 40mm / 1.6" Height 84mm / 3.4" Weight 265g / 0.5lbs (excluding cable and delay line)
