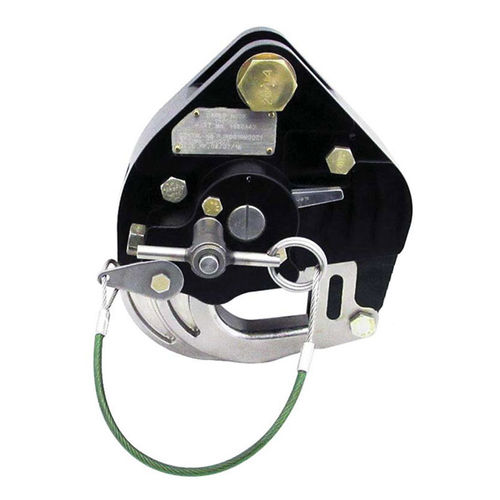

The Fast Rope Release unit 1500kg is a manually released, compact, lightweight mechanism deployed for fast rope or repelling applications from a rotary winged aircraft offering exceptional load carrying capacity for its size and weight.
Reliable and fail-safe keeperless configuration operated manually by aircrew.
Ultra-safe manually operated quick release pin prevents inadvertent, undesired and unsupervised release.
Single point attachment allowing for a wide range of installations.
The Hawk has been selected by Kawasaki Heavy Industries for installation on MCH-101 Merlin.
Keeperless design eliminates potential for roll-out.
Ultimate design strength load: - 6,750 Kg (14881.2lb)
Mechanical release capacity: - 3,750 Kg (min)
Release: - Manual Lever & Cable
Force requirement for mechanical relelase at 500-1500kg: - 1.5 – 9.0 Kgf (1.26″ x 1.61″)
Minimum release load: - 0 Kg
Unit weight: - 1.3 Kg (2.86lb)
Overall dimensions: - 133 mm * 140 mm * 117 mm
Shock load resistance: - 300G
