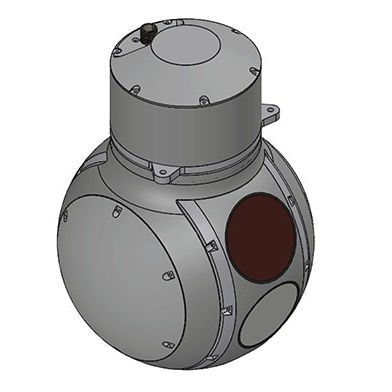

2-axis gyro-stabilized turret OTUS-U170

for dronesfor cameras

The OTUS-U170 gyro stabilised micro gimbal provides outstanding performance in one of the smallest form factors available. The two axis gimbal reach a new level of stabilisation performance thanks to purpose-built high-bandwidth torque motors implementing active vibration attenuation. All electronics required for the advanced digital control fits within the unit shell. The user only have to connect an external power supply, a video monitor and a joystick, to have the system up and running. A three dimensional micro-mechanical IMU and a laser range finder mounted directly on the optical bench, allows for advanced features like geo-location and geo-positioning, provided an external heading source is connected to the OTUS-U170. The powerful digital servo controller of the OTUS-U170 is even capable of providing enough computational power to drive optional features like vehicle control and navigation. Gimbal System - Two axis gyro stabilised fully integrated direct drive gimbal De-stabilisation - Down to <100 µrad Feedback Performance - 0.036° ± 0.1° typical encoder resolution/accuracy, 200 Hz update rate Pan/Tilt Range - Infinite range if payload does not require extending snout (sliprings in both axes) Slew Rate - Up to 180 °/sec maximum slew rate Control Interface - 1 x RS485 for user interaction and external heading/position source Video Interface - SDI, Ethernet, Analog Power Requirements - 18 - 36 Vdc, 20 W (typical), 40 W (peak) Temperature - 0 °C to +50 °C operational, -20 °C to 85 °C storage option: -40 °C to +50°C operational Dimensions - 170 mm diameter x 243 mm height Weight - from 2.3 kg (depending on payload and options)
