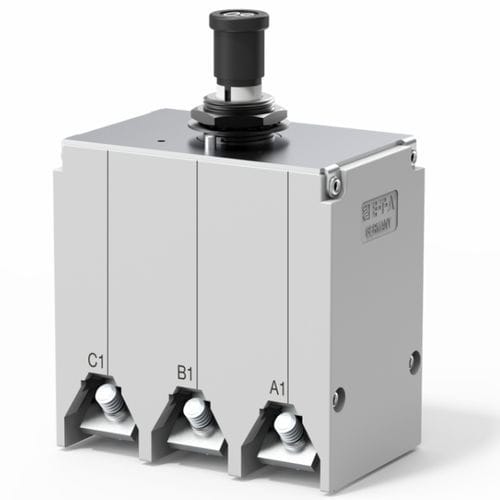

Thermal aerospace circuit breaker 5140 series

overloadmanual3-pole

Three pole, aircraft style thermal circuit breaker with trip-free mechanism and push/pull on/off manual actuation. An indicator band on the push button clearly shows the tripped/off position. Threadneck panel mounted, temperature compensated, with optional auxiliary contacts. The robust design is well suited to extremely harsh conditions. In the event of an overload in one, two or three phases all three poles will be disconnected. Mounting method - threadneck Terminal design - screw terminals Actuation - manual release push button Auxiliary contacts - with auxiliary contacts without auxiliary contacts Water splash protection - with water splash protection without water splash protection Illumination - without illumination Typical life - 5,000 operations mechanical and 2,500 operations at 1 x IN Certificates - ASNE 0459 NSA 931323 EN 3662-005 EN 3662-006 ACCESSORIES Order number - Description - X20080115/16 - splash cover black with O-ring X20080301 - actuator extension Y30700401-05 - identification collar X20080117/18 - splash cover transparent with O-ring APPLICATIONS Aerospace
