Airport lighting RPS

LEDsurfacewall-mounted

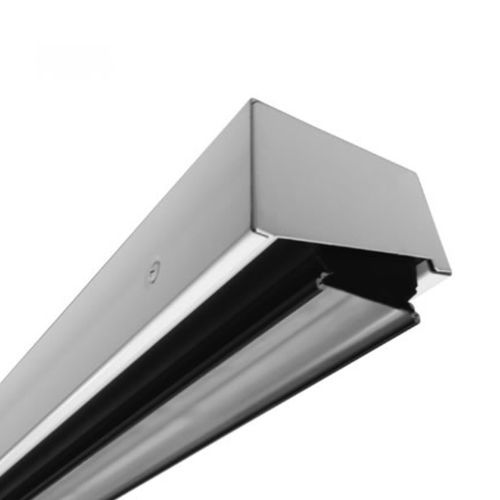

The Nulite RZ Series is the Regolo Perimeter Wall Grazer System. The slender design is ideal for highlighting textured walls in corridors, offices, lobbies and general purpose rooms. The light engine is designed for field constructed perimeter slots. If necessary, Nulite can provide back boxes compatible with Grid, Flange or Mud Ring type applications. Back boxes are available in custom lengths and corners. The RZ is designed to provide a perimeter lighting effect with an efficacy up to 106 lumens per watt. The Nulite Regolo RZ4 LED series is a narrow recessed perimeter slot system. The slender design is ideal for highlighting textured walls in corridors, offices, classrooms, lobbies and general purpose rooms. Specifications: Housing Construction: The housing is formed cold rolled steel painted after fabrication. Secure housing to structure by appropriate fasteners by others. The optional Grid, Flange or Mud Ring Back Box consists of visible extruded aluminum trim and cold rolled steel housing with heavy gauge end caps. Standard finish is white powder coat after fabrication. Light Engine / Distribution: The light engine consists of an extruded aluminum, black finish, base/heat sink with a linear LED array and extruded acrylic refractive lens. The “Stretto Optics” refractive lens yields a precise narrow distribution to graze down the wall surface with 10o field adjustment. An optional diffuser with white body and no refractor, softens the beam for a wider distribution. LED color is available in 3000K, 3500K or 4000K and in 80CRI or 90CRI. Module is replaceable. L90 ≥ 100,000 hrs.
