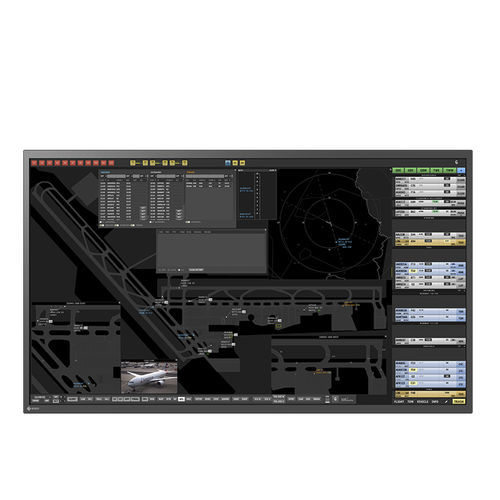

LED ATC display RP3226

3840 x 2160

Overview
The Raptor RP3226 is a 32" tower monitor designed for air traffic control and remote tower operations, delivering 4K UHD clarity and an IPS panel for wide viewing angles. Available in standard, touch, high-brightness and SwitchLink-enabled configurations to suit mission-critical ATC environments.

Key Features

• 4K UHD (3840×2160) for accurate monitoring of radar, flight data and camera-based remote tower imagery.
• Wide brightness range and high contrast: standard 5–490 cd/m², optional high-brightness up to 800 cd/m²; touch models support up to 760 cd/m².
• Optional PCAP touch panel with 10-point multi-touch, supporting finger or stylus input.
• Optional SwitchLink internal switching for keyboard/mouse sharing across systems; supports up to 6 video sources.
• Picture-by-Picture (PbyP) and Picture-in-Picture (PiP) for concurrent multi-source monitoring.
• Flexible mounting: flat, angled or upright installation; VESA compatible; optional desktop stand.
• Industrial-grade aluminum housing, optional anti-glare protection glass, fanless operation and built-in power supply for reliable 24/7 use.
• Reduced depth and bezel with lower weight for equipment-dense ATC consoles (standard ~7.9 kg; touch ~11 kg).

SwitchLink (Integrated Switching)
SwitchLink enables seamless switching of keyboard and mouse between connected systems. Cursor-driven switching changes inputs by moving the pointer across displays; keyboard hotkey switching transfers USB control via a predefined hotkey. Supports streamlined multi-monitor setups with one keyboard/mouse and up to six video sources.

Touch Panel Variation
Optional PCAP touch models accept multi-touch gestures, support anti-glare/anti-reflection surface treatments and provide a surface hardness suitable for operational use. Touch communication uses USB protocols compatible with common OS environments.

Flexible Installation & Positioning
The RP3226 supports horizontal (flat), angled and upright installations and operates reliably in landscape and portrait orientations. Touch-panel variants provide a fully flat front surface for flush integration where required.

Durability & Reliability
Lightweight aluminum housing reduces load on mounts; optional protection glass resists scratches and tool contact while preserving image clarity. Fanless design and integrated power supply reduce heat and cabling. Engineered for continuous 24/7 operation in mission-critical ATC contexts.

Notes

• Illustrative screen images provided by third parties where indicated.
• Model variations: Standard, Touch Panel, High Brightness, SwitchLink-enabled.

Technical specifications

• Model Variations: Standard, Touch Panel, High Brightness, SwitchLink
• Panel Type: IPS
• Backlight: LED
• Screen Size: 32" (812.8 mm)
• Native Resolution: 3840 x 2160 (16:9)
• Viewable Image Size (H x V): 708.5 x 398.5 mm
• Pixel Pitch: 0.185 x 0.185 mm
• Display Colors: 16.77 million
• Viewing Angles (H / V): 178° / 178°
• Brightness (typical): Standard 5–490 cd/m²; Touch 5–760 cd/m²; High Brightness 5–800 cd/m²
• Contrast Ratio (typical): 1800:1
• Response Time (typical): 8 ms
• Touch Panel (option): Projected Capacitive (PCAP), 10 points, surface hardness 7H
• Input Terminals: DisplayPort ×2, HDMI ×2
• USB: Upstream USB 2.0 Type-B; Downstream USB 2.0 Type-A ×2
• Speakers: 1.0 W + 1.0 W; Audio Output: Headphone jack
• Power Input: AC 100–240 V, 50–60 Hz
• Typical Power Consumption: 38 W (Standard, 150 cd/m²); 60 W (High Brightness/Touch, 150 cd/m²)
• Max Power Consumption: 63 W (Standard, max brightness+USB); 120 W (High Brightness/Touch, max brightness+USB)
• Features: Brightness Stabilization, OSD languages include English/German/Spanish, Communication: RS-232C/USB/RJ-45, SNMP
• Dimensions (W x H x D, without stand): 732.6 x 430.6 x 65.5 mm (Standard); 745 x 453 x 66.5 mm (Touch)
• Net Weight: 7.9 kg (Standard); 11 kg (Touch)
• VESA: 200 x 100 mm
• Operating Temperature: 0–35 °C; Operating Humidity: 15–80% non-condensing; Storage Temperature: -20–56 °C
• Protection: IP40 (front); IP20 (rear)
• Certifications: CE, cTUVus, FCC-B, ICES, WEEE
• Dimension drawing: available as PDF (RP3226)
