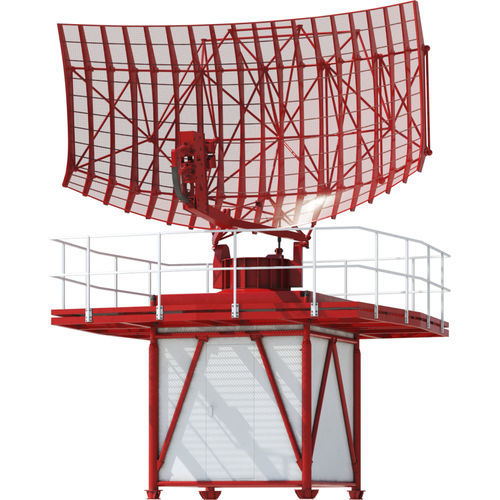

Surveillance radar RL–2000
secondaryprimaryapproach

surveillance radar
surveillance radar
surveillance radar
surveillance radar
surveillance radar
surveillance radar
surveillance radar
Add to favorites
Compare this product


Characteristics

Type
surveillance, secondary, primary, approach
Location
land-based
Applications
for aircraft

Description

RL-2000 is the latest generation of ELDIS primary surveillance radars for Terminal Approach Control Area. The radar meets EUROCONTROL and ICAO standards. The RL-2000 features fully solid-state highly modular configuration, fail-safe system and low lifecycle costs. Standard RL-2000 configuration includes the meteo channel. Whole system can be extended by monopulse secondary surveillance radar MSSR-1. This configuration extension represents an integrated system solution for TMA. ANTENNA The antenna creates a cosecant squared-shaped radiation pattern. This feature ensures effective ground clutter suppression and excellent coverage at higher altitudes. The system is equipped by linear, circular or elliptical polarization. TRANSMITTER The transmitter is a modular air-cooled solid-state system. The transmitter is operating in full frequency range with frequency diversity for short pulse and long pulse transmission. The overall configuration of the transmitter allows the use of 8 / 16 transmitter modules with GaN technology and advanced diagnostics. RECEIVER The high dynamic range of receiver is achieved by direct RF A/D conversion. The receiver includes automatic digital gain control and gain calibration. The receiver BITE diagnostics measures receiver performance parameters including noise figure. SIGNAL PROCESSOR The signal processor is based on 64-bit processors with high computing performance. Adaptive CFAR filtering includes scan to scan evaluation. Extraction process involves detection of target coordinates and their accuracy improvement. CONTROL AND MONITORING SYSTEM (CMS-CAM)

Catalogs

RL 2000
RL 2000
2 Pages
RL 2000 L
RL 2000 L
2 Pages
