Secondary radar MSSR-1

S Modesurveillancedetection

Overview
The MSSR-1 is a monopulse Secondary Surveillance Radar designed for continuous 24/7 aeronautical surveillance. It provides full Mode S functionality and a nominal coverage range of 256 NM. The system features a fully solid-state, modular architecture with full digitalization, fail-safe design and low life-cycle costs. All equipment is maintainable on-site; repairs can be performed without interrupting radar operation. The MSSR-1 complies with EUROCONTROL and ICAO standards. An optional independent four-channel ADS-B receiver system with 360° coverage can be integrated.

Key features
Antenna unit

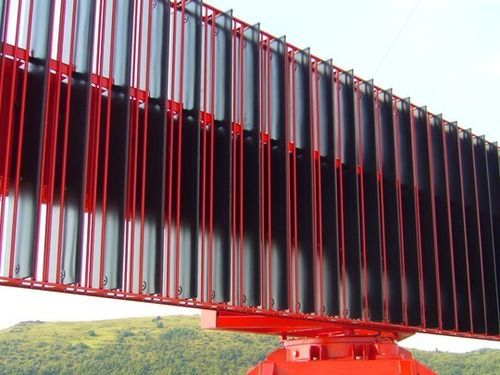

• The unit consists of antenna pedestal, drive, antenna frame and the antenna ASSR-35.

Interrogator

• Circuits for interrogations generation
• Receiving and signal processing in individual interrogation modes
• Extensive BITE internal diagnostics
• Fully duplicated configuration with automatic backup switchover

Transmitter / Receiver unit

• Variable output power
• Overload protection
• Automatic calibration and testing using a test signal injection
• Fully duplicated configuration with automatic backup switchover

Extractor unit

• Analyzes all received signals and detects individual reply codes and aerial targets
• Consists of reply detection unit, individual modes processing unit and target correlation unit

Data processing

• Garble and interference replies suppression
• Tracking and target correlations
• Mode S information database updating
• Statistical information about targets
• On-line monitoring of signal quality and internal diagnostics
• Variable data interface for ATCC

Control and monitoring system (CMS-CAM)

• Each equipment/unit fitted with independent BITE diagnostics for performance monitoring
• Automatic system backup changeover at system level
• LCMS located on radar site; RCMS can be located in remote technical room (e.g. control tower)
• Allows authorized personnel to control and adjust radar configuration and parameters remotely
• Incorporates a user-friendly graphical interface for data and status presentation

Technical specifications

• Coverage range: 256 NM
• Scanning speed: up to 15 RPM (with 256 NM coverage in ELS and EHS-S)
• Transmitter power: 2 500 W
• Altitude coverage: 66 000 ft
• Operation in II / SI code with EUROCONTROL certification (EC 262/2009)
• Full Mode S functionality including clustering ability and parameter setting
• Detecting ADS-B data from received signals
• Optional independent four-channel ADS-B system with 360° coverage
• Fully solid-state, modular design with whole-system digitalization and fail-safe architecture
• Designed for continuous operation with easy maintainability and low lifecycle costs
