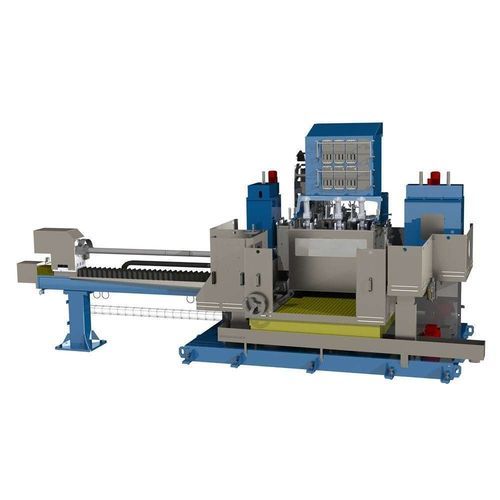

Ultrasonic inspection machine BIS-PA

phased arrayfor materialsfor NDT

Product overview
The BIS-PA uses phased array technology to inspect the full volume of round and square bars. The system is based on a unique "floating head" concept that maintains optimal probe positioning for consistent coupling and repeatable scans. Designed for inline or offline use, it performs volumetric inspections to detect cracks, inclusions and other internal defects at production speeds.

Applications and advantages

• Inline quality control on rolling, extrusion and heat-treatment lines
• Detection of longitudinal, transverse and volumetric defects
• Adaptable to a range of bar diameters and cross-sections (consult factory for ranges)
• Real-time imaging and data logging to support process control and traceability

Technical specifications

• Model: BIS-PA
• SKU: bis-pa
• Product ID: 129309
• Product line: IMS
• Inspection method: Phased array ultrasonic testing
• Probe positioning: floating head concept for constant coupling
• Integration: Inline or offline installation; customizable interfaces and controls

Options and services

• Installation and commissioning
• Operator training and maintenance contracts
• Calibration and validation services
• Software integration and reporting options
