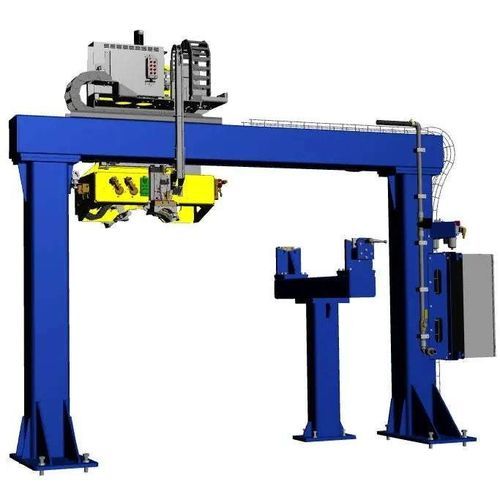

Ultrasonic inspection system In-Line ERW

automaticphased arraysurface

Overview
This in-line PAUT process-control system is installed between weld cooling and annealing to inspect ERW tube seams and the heat-affected zone (HAZ). Designed for high-temperature operation, the system incorporates a self-cooling wedge and automatic alarms to protect phased-array components and maintain inspection consistency during continuous production.

Product highlights

• In-line PAUT process-control system for continuous ERW tube production
• Specifically configured to inspect ERW tube seams and heat-affected zone (HAZ)
• Self-cooling wedge for reliable coupling at elevated temperatures
• Automatic alarms to protect phased-array probes and electronics
• Real-time data output and PLC integration for process control
• Compact design enabling simple integration into existing lines

Technical specifications

• Product line: IMS
• SKU: in-line-erw-high-temperature
• Internal ID: 129324
• Typology: In-line ERW High-Temperature Inspection System
• Compatible with standard phased-array probes and high-temperature couplants
• Designed for installation between weld cooling and annealing stations
