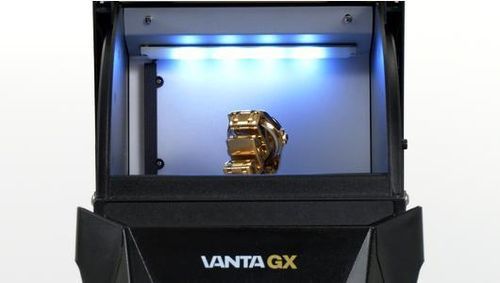

Precious metal analyzer Vanta GX

portablefor aeronautics

Product overview
Vanta™ GX benchtop XRF analyzers deliver fast, accurate precious metal analysis on the showroom floor or in the shop. Compact, stylish, and simple to use, the Vanta GX delivers instant nondestructive analysis of gold, silver, platinum, and more. Engineered for jewelry stores, pawn shops, and precious metal buyers, the Vanta GX determines purity, karatage, and composition in seconds.

Vanta GX-LTS

• Premium precious metal analysis
• Reliable high-throughput analysis of gold and other precious metals, including complex jewelries
• High precision
• Shorter test times for more tests per day
• 3 spot sizes: 9mm, 3mm, and 1mmm

Technical Specifications
Overall Dimensions (H × W × D):
Closed: 35.73cm × 23.93cm × 32.41cm (14.07 in. × 9.42 in. × 12.76 in.)
Open: 38.78cm × 23.93cm × 39.08cm (15.27 in. × 9.42 in. × 15.39 in.)
Sample Chamber Dimensions (H × W × D):
9.39cm × 17.67cm × 17.34cm (3.70 in. × 6.96 in. × 6.83 in.)
Weight:
10 kg (22 lb)
Excitation Source:
GX-LTS: 4-watt X-ray tube, 40kV, 200µA maximum tungsten (W) anode
Detector:
Silicon Drift Detector (SDD)
Thermo-electrically cooled, high-resolution
Power:
100–240 VAC, 50–60 Hz, 70 watts at 18 V and 3.9 A
Display:
Full-color touchscreen display: 800 × 480 (WVGA) 16-bit transflective
LCD with capacitive touchscreen supporting gesture control
Operating Environment:
Temperature: -10 °C to 40 °C (14 °F to 122 °F)
Humidity: 10% to 90% relative humidity, noncondensing
Operating System:
UI Linux software, cloud and plug-in scripts enabled for easy data sharing and management
Application WebUI PC software for data acquisition and processing package
Camera:
Full-color VGA camera
Warranty:
Three-year standard warranty
Selected Accessories:
AC power adapter:
Output: 70 W, 18 VDC, 3.9 A with straight-barrel output connector
Input: 100–240 VAC, 50–60 Hz
1.8m (6 ft.) AC line cord, 18 AWG cable with UL listed, IEC male plug, 0.9m (3 ft.) USB cable
Spot Size:
VGX-LTS: 9mm, 3mm, and 1mm
Connectivity:
1 mini USB and 2 full-size USB
