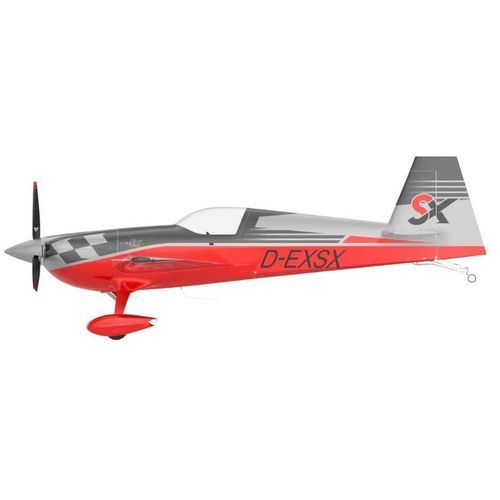

Aerobatic aircraft 330SX
single-enginepiston enginesingle-seat

Aerobatic aircraft - 330SX - EXTRA Flugzeugproduktions- und Vertriebs GmbH - single-engine / piston engine / single-seat
Aerobatic aircraft - 330SX - EXTRA Flugzeugproduktions- und Vertriebs GmbH - single-engine / piston engine / single-seat
Aerobatic aircraft - 330SX - EXTRA Flugzeugproduktions- und Vertriebs GmbH - single-engine / piston engine / single-seat - image - 2
Aerobatic aircraft - 330SX - EXTRA Flugzeugproduktions- und Vertriebs GmbH - single-engine / piston engine / single-seat - image - 3
Aerobatic aircraft - 330SX - EXTRA Flugzeugproduktions- und Vertriebs GmbH - single-engine / piston engine / single-seat - image - 4
Aerobatic aircraft - 330SX - EXTRA Flugzeugproduktions- und Vertriebs GmbH - single-engine / piston engine / single-seat - image - 5
Aerobatic aircraft - 330SX - EXTRA Flugzeugproduktions- und Vertriebs GmbH - single-engine / piston engine / single-seat - image - 6
Aerobatic aircraft - 330SX - EXTRA Flugzeugproduktions- und Vertriebs GmbH - single-engine / piston engine / single-seat - image - 7
Aerobatic aircraft - 330SX - EXTRA Flugzeugproduktions- und Vertriebs GmbH - single-engine / piston engine / single-seat - image - 8
Add to favorites
Compare this product

Characteristics

Applications
aerobatic
Number of engines
single-engine
Motorization
piston engine
Number of places
single-seat
Stall speed

56 kt, 58 kt, 61 kt

Empty weight

585 kg
(1,290 lb)

Max. take-off weight

780 kg, 870 kg
(1,720 lb, 1,918 lb)

Fuel capacity

188.5 l
(49.8 gal)

Length

6.6 m
(21'07" )

Height

2.6 m
(8'06" )

Wingspan

7.8 m
(25'07" )

Description

Overview
The EXTRA 330SX is a single-seat aerobatic monoplane designed for competition and freestyle flying. It evolves from the nine-time world-championship-winning 330SC and is certified for high-load aerobatic maneuvers.

Airframe
  • Carbon fiber wing assembly with integral fuel tank
  • Carbon composite empennage structure
  • Fuselage assembly in 1.7734 steel
  • Steerable lightweight tailwheel
  • Fiberglass landing gear spring
  • Single-seat bubble canopy
  • Carbon pushrods on elevator control
  • Titanium firewall
  • High-performance ailerons
  • Lightweight wing fairings


Powerplant and Propeller
  • Lycoming AEIO-580-B1A, 315 hp, 6-cylinder engine
  • Muehlbauer MTV 9-B-C/C198-25, 3-blade propeller (standard)
  • Muehlbauer MTV 14-B-C/C190-130, 4-blade propeller (optional)
  • Two fuel pumps (engine-driven + electric)
  • Gomolzig 6-in-1 exhaust system
  • Dual oil cooler system
  • Electric starter


Cockpit
  • Manually adjustable rudder pedals with differential toe brakes
  • Contour-molded composite adjustable seat
  • Hooker safety harness with ratchet
  • Two bezel-operated air vents
  • Electrical elevator trim system
  • Ergonomically optimized seat position
  • Roomy pilot space for single-seat configuration
  • *Additional options available


Systems
  • Smoke system with automatic filling
  • Pilot static system drain
  • Trickle charger socket
  • 8 Amp alternator
  • 12V battery
  • Avionic backup battery (optional)


Standard panel equipment
  • Garmin G3X Touch with engine information system (EIS); airspeed indicator (ASI), altimeter (ALT), compass; digital clock (optional)
  • Trig transponder & COM
  • TN70/ADS-B (optional)


Technical data
Wingspan: 25.6 ft / 7.8 m
Length: 21.8 ft / 6.6 m
Height: 8.4 ft / 2.6 m
Wing area: 107.9 ft2 / 10 m2
EASA certified load factor: ±10 g
Never exceed speed (Vne): 220 kcas
Maneuvering speed (Va) (acro): 158 kcas
Stall speed at 1,808 lbs / 820 kg (Vs): 58 kcas
Stall speed at 1,720 lbs / 780 kg (Vs): 56 kcas
Stall speed at 1,918 lbs / 870 kg (Vs): 61 kcas

Technical specifications
  • Configuration: single-seat aerobatic monoplane
  • Fuselage: 1.7734 steel assembly
  • Wing: carbon fiber wing assembly with integral tank
  • Empennage: carbon composite structure
  • Landing gear: fiberglass landing gear spring
  • Tailwheel: steerable, lightweight
  • Flight controls: carbon pushrods on elevator, high-performance ailerons
  • Firewall: titanium
  • Engine: Lycoming AEIO-580-B1A, 315 hp, 6-cylinder
  • Propeller: Muehlbauer MTV 9-B-C (3-blade) standard; MTV 14-B-C (4-blade) optional
  • Fuel system: integral wing tank, two fuel pumps (engine-driven + electric)
  • Fuel capacity: total 49.8 gal / 188.5 l; usable 49.2 gal / 186.5 l; acro usable tanks 17.6 gal / 66.5 l
  • Empty weight (typical equipped): 1,291 lbs / 585 kg
  • MTOW normal category (+6/-3 g): 1,918 lbs / 870 kg
  • MTOW acro category (+10/-10 g): 1,720 lbs / 780 kg
  • Performance highlights: Vne 220 kcas; Va (acro) 158 kcas; stall speeds vary with weight (56–61 kcas)
