Handling robot M-1000iA
parallelfor productionfloor-mounted

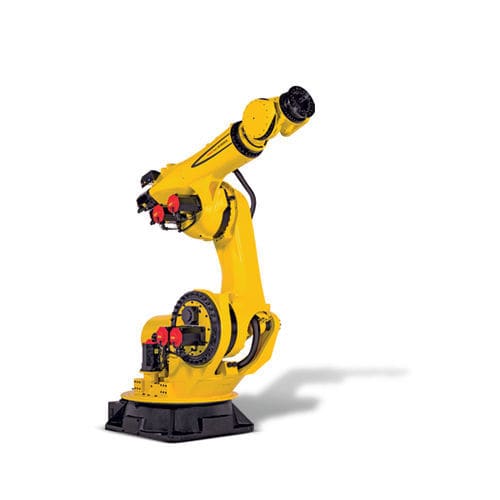

Handling robot - M-1000iA - FANUC FRANCE - parallel / for production / floor-mounted
Handling robot - M-1000iA - FANUC FRANCE - parallel / for production / floor-mounted
Handling robot - M-1000iA - FANUC FRANCE - parallel / for production / floor-mounted - image - 2
Handling robot - M-1000iA - FANUC FRANCE - parallel / for production / floor-mounted - image - 3
Handling robot - M-1000iA - FANUC FRANCE - parallel / for production / floor-mounted - image - 4
Handling robot - M-1000iA - FANUC FRANCE - parallel / for production / floor-mounted - image - 5
Handling robot - M-1000iA - FANUC FRANCE - parallel / for production / floor-mounted - image - 6
Add to favorites
Compare this product


Characteristics

Type
handling, parallel
Applications
for production
Other characteristics
floor-mounted
Number of axes
6-axis
Carrying capacity

1,000 kg
(2,204.623 lb)

Reach

2,353 mm
(92.638 in)

Description

The M-1000iA is FANUC’s largest robot to feature a serial link mechanism, rather than the parallel link mechanism typical of most heavy payload robots. As a result, the M-1000iA gives a wider range of motion in both vertical and longitudinal directions. Moreover, a heavy payload rating, high wrist inertia and flip-over capability, make the M-1000iA perfect for all kind of heavy payload material handling applications (e.g. EV battery handling, lifter, etc.). Meet the M-1000iA Have a look at this large handling robot M-1000iA handling an electric vehicle battery. It has a wrist payload of 1000 kg and a maximum reach of 3253 mm. Of particular note, the M-1000iA is FANUC’s largest robot to feature a serial link mechanism, rather than the parallel link mechanism typical of heavy payload robots. Versatility in a Large Workspace Benefit from a simple, versatile and cost-effective design that offers a wide working envelope thanks to the serial link mechanism that supports up to 395 degrees in axis 3. More Throughput Maximise your throughput and benefit from short cycle times and high repeatability with FANUC’s innovative servo technology. Prepared for Harsh Environment Ideal for dusty and humid environments, the IP67 protection rating for the wrist and IP54 for the body protects the robot from moisture and dust. Easy Integration Simplify integration even under difficult installation conditions thanks to an excellent weight (5300 kg) to payload (1000 kg) ratio. Increased Productivity Take advantage of the super strong and compact wrist which supports superior torque and inertia performance, eliminating the need for a larger model.
