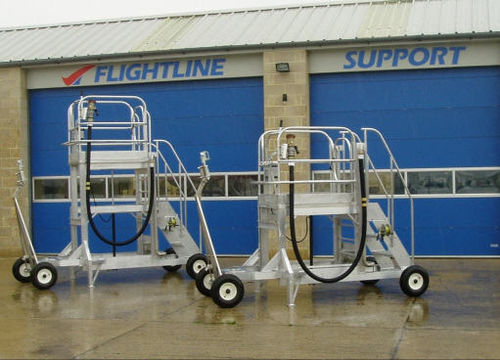

Aluminium and stainless-steel construction. Designed to be
robust, but light weight and easily manoeuvred by a single
operator. 4 off heavy-duty 470mm diameter wheels are
used to aid manual manoeuvrability
Typical Dimensions: Length 3.6m, Height 2.6m, Width 1.7m
OPERATING RANGE :
• Platform Height (lowered) 1520mm
• Platform height (fully elevated) 2120mm
• SWL 200 kgs
• Manufactured with front mounted out-riggers to
guarantee stability whether working with the
platform in the lowered or fully elevated position
1 x 2.5” ISO45 aviation coupling, fitted for connection to
the refuelling vehicle.
Main pipework constructed in 2” (50mm) Schedule 10 –
304 grade stainless steel.
Manually operated hydraulic pump actuates the platform
offering flexibility of operating height between 1520mm
and 2120mm above ground level.
Single 2” refuelling hose with underwing nozzle.
Option of adding additional pipework and a second
refuelling hose and nozzle.
Integrated thermal relief system & collector tank
