Light aircraft autopilot

for helicopterdual-axis

Overview
Our Multi Axis autopilot system is compatible with Oblò A/P or Oblò2 A/P, Eclipse or Eclipse NG display. It's formed by an ACU (Autopilot Control Unit) and the FX75 digital servo per controlled axis to provide heading, altitude and navigation control.

Autopilot Components

• ACU (Autopilot Control Unit) — available in vertical or horizontal orientation
• FX75 — digital servo actuator (one servo per controlled axis)

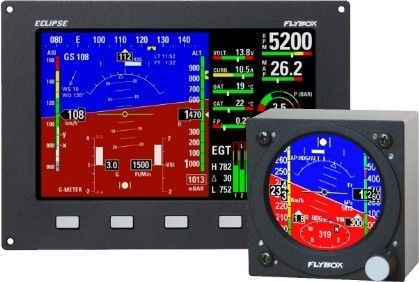

• Oblò-A/P / Oblò2-A/P / Eclipse or Eclipse NG

Autopilot Features

• HDG/TRK Mode: heading and track control for horizontal navigation
• ALT Mode: maintain altitude or climb/descend to a preselected altitude
• NAV Mode: follows a GOTO or flight plan from an external GPS
• Additional/safety features: remote engage/disengage from stick or yoke; hold HDG/TRK for 180° left turn; hold NAV for 180° right turn; user-settable climb rate (Vs); user-settable override torque

Autopilot Compositions
Oblò-based autopilot: requires an Oblò A/P or Oblò2 A/P (autopilot versions), an ACU and 1 or 2 FX75 servos depending on number of axes.
Product references on site:

• 801010 (Oblò A/P autopilot version, includes standard Oblò 801000),
• 801011 (Oblò2 A/P autopilot version, includes Oblò2 801002)
• Standard Oblò (801000) or Oblò2 (801002) can be upgraded to autopilot via software activation key (801020).

Eclipse-based autopilot: requires an Eclipse or Eclipse NG, an ACU and 1 or 2 FX75 servos.


Illustrations

• Instrument images and wiring diagrams are provided for Oblò- and Eclipse-based installations, showing instrument layout and wiring for autopilot integration.

Technical specifications

• Product type: Multi Axis Autopilot system
• Control unit: ACU — vertical or horizontal versions available
• Actuators: FX75 digital servos (one per controlled axis; 1 or 2 servos depending on installation)
• Flight modes supported: HDG/TRK, ALT, NAV
• Safety & user functions: remote stick/yoke engage-disengage; 180° hold maneuvers; adjustable climb rate (Vs); adjustable override torque
• Upgradeability: standard Oblò (801000) or Oblò2 (801002) can be upgraded to autopilot via software activation key (801020)
• Wi-Fi capability: thanks to our Flybox Connect Kit (801030), Oblò2-A/P and Eclipse NG can receive directly from the navigation app a flight plan via Wi-Fi, and fly it automatically through the autopilot.
