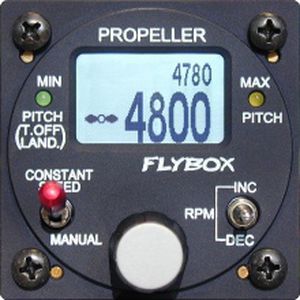

Throttle control unit PR1-P

for aircraft

Overview
The PR1-P controls and maintains engine speed by varying propeller pitch. Operation is intuitive: set the target engine RPM and the PR1-P performs regulation, displaying both the target RPM and the actual RPM measured on the motor. Adjustable parameters allow adaptation to different propeller characteristics for precise control. The patented hardware and software maintain the target speed within +/- 20 RPM, delivering accuracy comparable to hydraulic governors. PR1-P and PR2-P are suitable for very fast electric propellers with a fine-to-coarse travel time of 2–3 seconds.

Downloads
Manuals available in English and Italian (PDF).

Main features

• RPM setting via rotary knob or INC/DEC switch
• Min and max pitch LED indicators
• Propeller test function prior to take-off
• Hour-meter recording actual motor running time
• External switch input for pitch adjustment from the cockpit
• Compatibility with external potentiometer or Flybox lever
• LCD with backlight and coated glass
• Safety switch to disable electronic control in case of failure

Components / Optionals

• 402010 — Ready-to-use wiring for PR1-P
• 601080 — CAN BRIDGE
• 300010 — CAN RPM

Technical specifications

• Product code: Cod. 401010
• Graphic LCD with backlight and coated glass, dimensions 29 x 18 mm
• Standard panel mount: 2 1/4 in (57 mm)
• Anodized aluminium housing
• Overall dimensions: 60 x 60 x 52.6 mm
• Weight: 190 g
• Operating temperature: -10 to +70 °C
• Supply voltage: 11 to 20 V
• Supply current: 100 mA
• Maximum motor current: 7 A
• RPM input voltage range: 10 to 100 V
• Measurable RPM range: 1000 to 8000 RPM
• RPM resolution: 10 RPM
• RPM accuracy: 0.02%
