Overview
The integrated instrument ECLIPSE NG features a sunlight-readable 7-inch display that presents engine and flight data organized across multiple pages. Key capabilities include graphical data visualization, voice alarms, three color camera inputs and an integrated datalogger with graphical viewer. Two versions are available to suit different panel configurations and budgets.

Main pages and functions

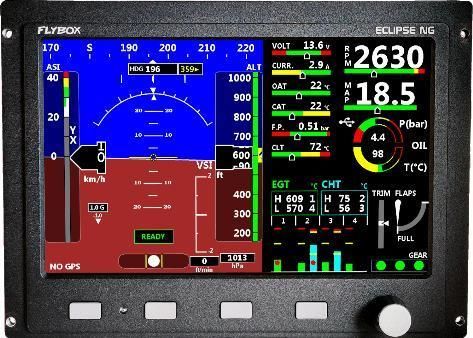

• IFIS page (Integrated Flight Information System): artificial horizon and flight data on the left, essential engine parameters on the right
• PFD page (Primary Flight Display): full-page attitude indicator with enhanced flight data
• EIS page (Engine Information System): complete engine parameters, hour meters and fuel management section

Air and attitude data

• Attitude indicator
• Slip indicator
• Compass
• Indicated air speed
• Altimeter
• Vertical speed indicator
• GPS ground speed
• G-Meter

Engine

• RPM
• MAP
• Oil pressure
• Oil temperature
• Up to 6 EGT channels
• Up to 6 CHT channels
• Coolant temperature
• OAT
• CAT
• Fuel pressure
• Fuel computer: instantaneous fuel consumption, endurance, fuel remaining, fuel used since last flight, range and reserve to next point (if connected to GPS)
• Up to 3 calibrated fuel level gauges
• Supply voltage
• Current
• Hour meter with separate counters for each speed (green, yellow, red arcs)
• Local time from GPS
• Automatic flight timer

Moving parts indication

• Trim position (elevator)
• Flap position
• Gear up/down

2-axis autopilot

• Maintain set heading and altitude
• GPS navigation (from wire reading RMB)
• WiFi navigation (receive flight plan from app, requires Flybox Connect kit)

Other features

• Datalogger with 1 second sampling over 100 h
• Peak memory for each engine parameter reading
• 3 camera inputs
• Voice alarm output
• Digital alarm outputs (to connect LED or buzzer)
• Customisable thresholds, units and alarms for each instrument
• 2 CAN bus
• 2 RS232 serial ports
• 1 USB port
• GPS data input
• Altitude encoder for serial transponder

Slave / MFD
The Eclipse NG MFD is a slave instrument that displays all available data from the main Eclipse NG master unit and connects to the main instrument with only two wires. It is intended for two-screen glass cockpit configurations.

Characteristics / technical specifications

• Dimensions: 188 x 136 x 46 mm
• Weight: 900 g
• Operating temperature range: -20 to +70 °C
• Supply voltage: 10–30 Vdc
• Supply current: 0.5 A
• Electrical connections: D-Sub connectors
• Software upgradable by USB pen drive
