fuel pump / 0 - 1 bar / 1 - 3 bar / for light aircraft

{{requestButtons}}

Characteristics

  • Medium:

    fuel

  • Pressure:

    0 - 1 bar, 1 - 3 bar

  • Applications:

    for light aircraft

  • Fuel flow:

    Max.: 162 l/h (43 us gal/h)

    Min.: 45 l/h (12 us gal/h)

Description

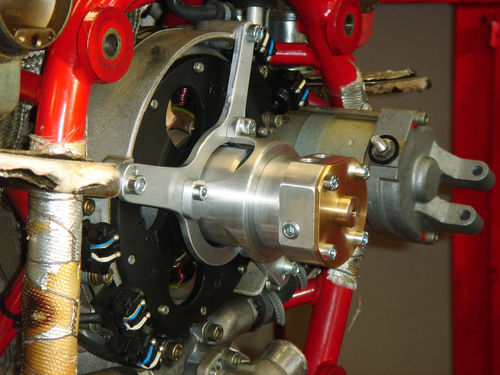

Flygas produce Mechanical Fuel Pumps from many years, and from now will be available at all the Rotax 914 turbocharged or 912Ul-ULS Supercharged, instead at the electrical Pierburg 1 bar pump.

Easy and reliable installation on your Rotax 914 flywheel without modify request so simple installation, this fuel pump it’s supplied with all parts necessary included installation booklet with picture step by step.

After installed, it will can supply gasoline at 1bar of pressure (until 3bar in a case of E.F.I. installed)
This full parts ready to install Fuel Pump is lightweight (only 680Grams, just basically same weight of electrical Pierburg Fuel Pump included wires and switch.)

Technical Detail:
Total weight installed 680 grams (about one mechanical fuel pump)
Maximum pressure reached 14Bar
Maximum continuative pressure 3Bar
Maximum Speed 7000 RPM
Maximum draft depth is 900mm
Pressure regulator of fuel, is required on the plan
Flow of gasoline in function of RPM and Pressure
