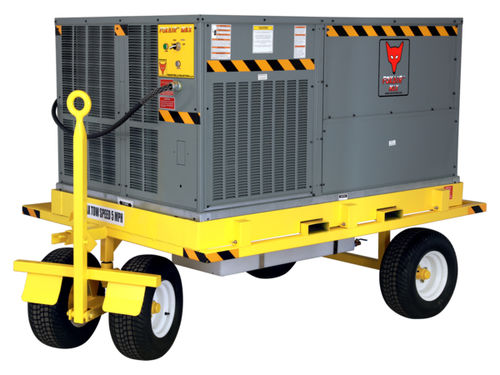

Mobile PCA unit
electricmaintenance

mobile PCA unit
mobile PCA unit
Add to favorites
Compare this product


Characteristics

Mobility
mobile
Other characteristics
electric
Applications
maintenance
Air flow

5.663 m³/min
(199.987 ft³/min)

Description

FOXAIR™ MAX is designed with the owners/operators of aircraft ranging in size from Business Jets to Regional Jets in mind. Delivering 58,000 BTU of refrigerated air for pre-cooling or maintenance operations, FoxAir™ MAX is designed for outdoor or hangar use. Add the heating option creating a comfortable climate year round. FoxAir™ MAX is easily maintained by any HVAC technician with basic HVAC tools. 4 models available operating from 207- 575 VAC Single and Three Phase power sources. Ultra-Quiet (78 decibels) and easy to operate with one switch operation. Trolley is rigid welded from tubular steel and powder coated in Safety Yellow with a zinc based primer for maximum durability. Overall dimensions 89Lx57Wx65"H. Weight with empty water tank 1100 lbs. Tow Bar "brakes" front tires when raised and locked. Oversized 205/65-14 tires make this unit easily maneuvered by one person on any surface. Towable to 5 MPH. 2000 CFM air flow nominal with protected air filter rack utilizing standard 14x20x2" filters (4). Integral Freeze Protection Switch prevents condenser coil freeze-up. Integral power breaker/switch. High efficiency scroll compressor and R410A refrigerant system is easily serviced by any AC service technician. 21 gallon Vu-Thru condensation tank with drain valve eliminates wet work areas. Ready to operate. Shipped with 100' power cable and 25' air delivery hose standard. Other optional lengths available. 1 year warranty.
