Fuel tank

rigidfor aircraftfor airport

Overview

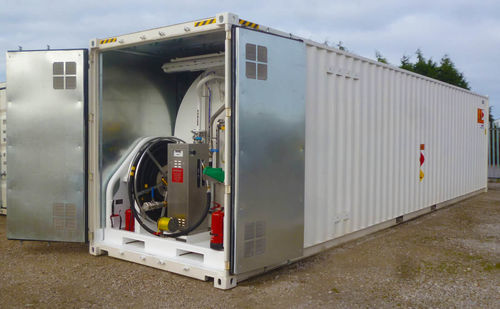

Containerised bulk storage and refuelling system for Avgas and Jet A-1, supplied as a turnkey unit suitable for transport and deployment to remote aerodromes. Capacities range from 10,000 to 34,000 litres, installed inside 20ft or 40ft high-cube ISO containers to simplify handling and site placement.

Key Features

• Double-skinned cylindrical inner tank within a 20ft or 40ft high-cube ISO container
• Manufactured to meet CAA guidelines for aircraft refuelling equipment
• 110% bunding with stainless steel inner tank and mild steel outer tank
• Container enclosure adds security, weather protection and insulation
• Compatible with Avgas and Jet A-1 aviation fuels

Standard Specification

• Installed inside 20ft or 40ft high-cube ISO container
• Suction line dip tube for fuel delivery – 2" with anti-siphon valve
• Overfill prevention valve
• Sump pump and fuel sampling point
• Removable inspection hatch providing access to inner tank via container top
• Tank level gauge
• Tank and container coated with 2K epoxy primer and 2K acrylic topcoat, minimum DFT 100 microns
• Inner tank arranged with 1:30 slope to create sump point for water/contamination drainage
• Designed for storage of Jet A-1 and Avgas
• Standard colour: White

Technical specifications

• Capacities: 10,000 to 34,000 litres
• Fuel types: Avgas and Jet A-1
• Container options: 20ft or 40ft high-cube ISO
• Tank construction: double-skinned cylindrical design; stainless steel inner tank; mild steel outer tank
• Bunding: 110% bunded
• Delivery: suction line dip tube 2" with anti-siphon valve
• Safety: overfill prevention valve; tank level gauge
• Maintenance/access: removable inspection hatch via container top; sump pump and fuel sampling point
• Internal slope: 1:30 to create sump for water/contamination drainage
• Coating: 2K epoxy primer + 2K acrylic topcoat, min. DFT 100 μm
• Standard finish colour: White
