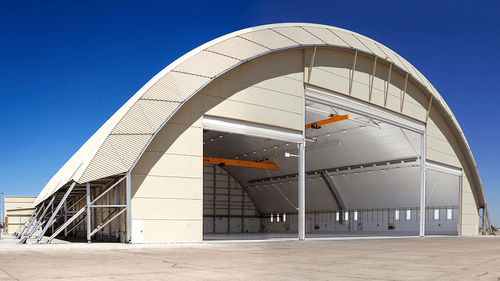

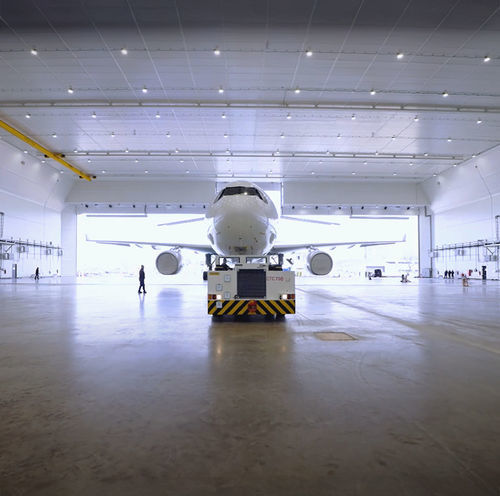

Aircraft hangar

Overview
Gaptek manufactures MRO hangars using an industrialized modular system adaptable to demanding aeronautical requirements. Multiple base models are available; engineering configures characteristics and options to meet each project's specifications.

Applications / Uses

• Storage
• Executive aviation
• Hangar assembly
• MRO (maintenance, repair and overhaul)
• Painting

Technical specifications
Dimensions: Unlimited
Assembly time: 3 months (civil work) + 3 months (assembly)
Construction system: Gaptek Flat
Required cementation: Yes

Structure

• Structure assembly: Mechanical joints
• Material: High-resistance aluminum alloy AW-6082-T6
• Warranty: 20 years (structure)

Standard resistances and conditions

• Wind standard: 120 km/h
• Fire standard: REI30 (configurable up to REI120)
• Snow standard: 0.75 kN/m² (options up to 3 kN/m²)
• Climate range: -20 ºC to 55 ºC
• Earthquake reference: 0.1 g

Envelope

• Exterior: Corrugated metal sheet, high-resistance tensile canvas or insulated panels
• Interior: Rock wool sandwich panel

Certifications

• ISO 9001:2015
• UNE-EN ISO 14001
• UNE-ISO/IEC 27001
• ISO 45001:2018
• CE Marking (including EN-1090)

Options
Plus resistances

• Hurricane Kit: up to 250 km/h
• Fire Plus: up to REI120
• Snow Plus: up to 3 kN/m²

Hangar door

• Sectional
• Sliding

Additional elements

• Bridge crane
• Gaptek modules for workshops and offices
• PIT connectors
• Controlled atmosphere
• High-efficiency air cooling system
• Additional doors for vehicles and staff
• Geothermal energy system
• Clearance lights
• Sprinklers

Additional services

• Maintenance
• Life warranty with Gaptek maintenance
• Logistics

Applicable standards

• International Building Codes
• Eurocodes
• Spanish Technical Building Codes (CTE)
• UFC
• NFPA
• RSCIEI

Characteristics / Technical specifications

• Product type: Hangar (modular, industrialized prefabricated system)
• Dimensions: Unlimited (modular, scalable)
• Assembly time: Approximately 6 months total (3 months civil work + 3 months assembly)
• Primary structural material: Aluminum AW-6082-T6
• Structure assembly method: Mechanical dry joints
• Standard wind resistance: 120 km/h (optional up to 250 km/h with Hurricane Kit)
• Standard fire resistance: REI30 (configurable up to REI120)
• Standard snow load: 0.75 kN/m² (optional up to 3 kN/m²)
• Operational climate range: -20 ºC to 55 ºC
• Earthquake design reference: 0.1 g
• Envelope options: corrugated metal, tensile canvas, insulated panels; interior: rock wool sandwich panel
• Warranty: 20 years for structure; additional element warranties vary
• Certifications: ISO 9001:2015, ISO 14001, ISO/IEC 27001, ISO 45001:2018, CE Marking (EN-1090)
