Short description

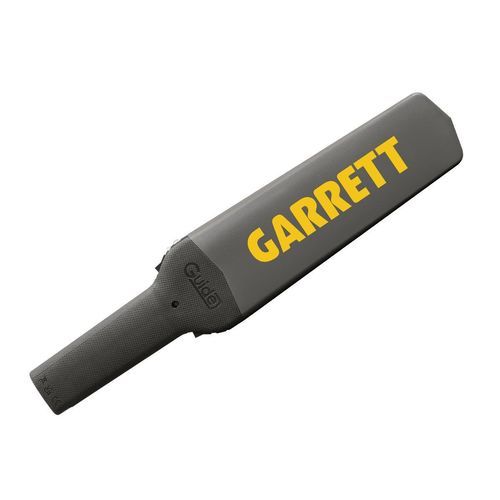

Next-generation hand-held security metal detector for secondary screening; combines simple operation with adjustable sensitivity for a range of security environments.

Product highlights

• Ease of use: one-button activation and intuitive three-button control; microtextured dimpled rubber grip with IP65 sealing and hardened to MIL-STD 810H drop requirements.
• Adjustable detection: seven selectable sensitivity levels to tune detection from large threats to prison/clean‑room level screening.
• Interference handling: Offset Button to reduce electromagnetic interference from other handhelds and a Reduced Sensitivity Switch to mitigate rebar interference.
• Rechargeable power: built-in rechargeable lithium‑ion battery; includes a 3‑ft USB‑A to USB‑C charging cable; operates >125 hours per charge and fully recharges in ~5 hours.
• Fast, consistent scans: 8-inch scan length for larger coverage, self-calibrating design simplifies scanning patterns and reduces operator fatigue.

Additional details & features

• Modular charging options and an optional compact charging base accessory for upright charging and secure storage.
• LED indicators: separate green and red Ready and Alarm LEDs; soft white LEDs in the base for Status/Settings and 4-level charge indication (0–25%, 26–50%, 51–75%, 76–100%).
• Alarm modes: selectable audible alarm tone or haptic (vibrate) alarm via a rocker switch.
• Designed for compatibility and improved performance over prior Garrett handhelds while remaining simple to operate for new users.
• Large 8-inch scanning surface improves coverage and speeds checks.

Technical specifications

• Detection Frequency: ~55 kHz
• Audio Frequency: ~2 kHz
• Dimensions: Length: 16" [406.4 mm]; Width: 3.375" [85.7 mm]; Thickness: 1.125" [28.6 mm]
• Shipping Dimensions: Length: 21" [533.4 mm]; Width: 4" [101.6 mm]; Thickness: 2" [50.8 mm]
• Weight: 1 lb [0.5 kg]
• Voltage: 3.8 V dc
• Current: 15 mA typical
• Battery: Lithium Ion 3.8 V, 2.5 A·hr
• Operating Temperature: -4°F (-20°C) to 140°F (60°C)
• Humidity: 100%
• Environmental Rating: IP65
• Scan Length / Area: 8-inch scanning surface
• Selectable Sensitivities: 7 levels
• Certifications / Durability: Hardened to meet MIL-STD 810H drop test requirements
