GlasStile S consists of a grained or polished stainless steel column with one glass leaf.
Key Specifications
Power Supply: 230Vac 50 Hz or 115Vac 60 Hz
Power Rating: 250VA
Operating Temperature: +5 to +40 °C (RH 95% non condensing)
IP rating / MCBF / MTTR: IP 20 / 1M cycles / less than 30min
Flow Rates (approximate figures):
Insertion Type Reader: 10 passages per minute
Swipe Type Reader: 15 passages per minute
Proximity Reader “Hands Free”: 20 passages per minute
Motorised Entrance Gate for Internal Installation
Entrance Gates are designed to combine smooth function and sophisticated appearance with security needs in settings where design is important. The Entrance Gates are completely silent and provide easy passage and high throughput. Designed to reduce the barrier effect and
create a welcome atmosphere, visitors can immediately see how and where they should enter.

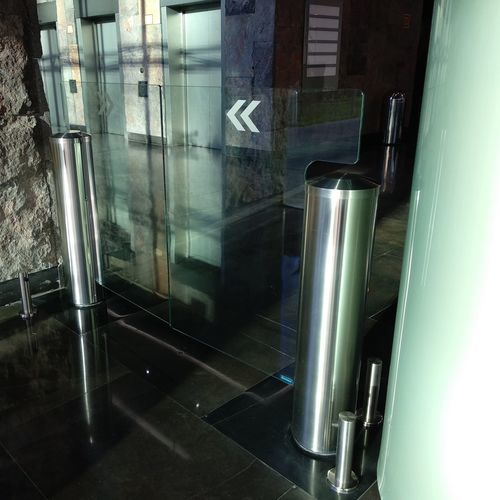

GlasStile S consists of a grained or polished stainless steel column with one glass leaf.
A wide selection of glass dimensions and styles is available to create a two-leaf passage or match with the design of the SpeedStile product range.
On receiving the signal from the access control system or push button, the unit will unlock and drive through 90° away from the signal direction. Should the leaf meet any resistance, it will stop and nudge forward. If obstruction continues the unit will alarm and free wheel; an auto-reset will re-establish control.
