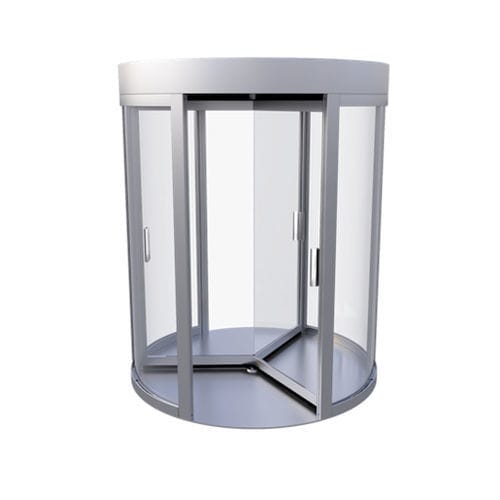

Elegant and transparent full-height turnstile with power-assisted movement and three (120°) rotor elements
Key Specifications
Power Supply: 230Vac 50 Hz or 115Vac 60 Hz
Power Rating: Max 240W
Operating Temperature: 0 to +45°C (RH 20 - 90% not condensing)
IP rating / MCBF / MTTR: IP 21 / 1.5M cycles / less than 30 min
Flow Rates (approximate figures):
Insertion Type Reader: 12 passages per minute
Swipe Type Reader: 15 passages per minute
Power Assisted Full-Height Turnstile for Internal Installation
RevoLite is an elegant and transparent full-height turnstile with power-assisted movement with three (120°) rotor elements.
Upon receipt of a valid signal, after being manually pushed to start motion, the rotor will automatically rotate for the remainder of the movement to allow passage.
The non-passage zone is monitored by sensors which will detect and prevent passage by reversing the direction of movement to allow the unauthorised user to exit.
An advanced Anti Piggy Backing (APB) detection option can be added in order to enhance prevention of multiple users passing through in the same sector.
The RevoLite is available in 1500 and 1800mm diameters and also available with an extended passage height.
All configuration of parameters and functionality is carried out via a user friendly graphical interface via PC or optional tablet.
The RevoLite is delivered either fully assembled or in kit form and is installed directly to finished floor level or is optionally available with a painted steel base.
In the event of an emergency or power-off scenario, the unit can be configured fail-safe i.e. rotor freely rotates or fail-lock i.e. rotor locks.
