Overview

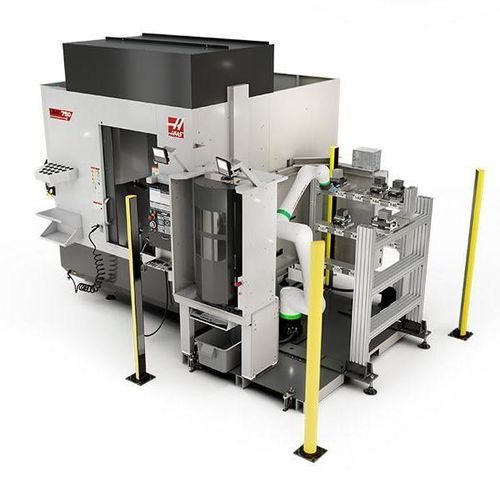

The Haas RPL-30KG Robotic Pallet Loading System includes the Haas 30 kg capacity robot, loading station, light curtain*, pallet rack, and 3 zero point pallets (expandable to 15 pallets). Includes the Zero Point Ready option, auto window, and remote jog handle when purchased with a machine. Requires the Zero Point Ready option, auto window, and remote jog handle when purchased separately.

Key Features

• All-inclusive design for palletized machining cells
• Plug-and-play integration with UMCs and VMCs via Haas control
• Set up and operated directly from the Haas control interface
• Dual zero point system for rigid and repeatable pallet clamping
• Includes load station, pallet rack, and 3 zero point pallets (expandable)
• Expandable to 15 pallets; optional 2nd rack expands to 30 pallets

Notes

• The dual zero point system requires a minimum of 100 psi (6.9 bar) air pressure supplied from the machine.
• Haas Robots carry a full two-year warranty.
• *Regions requiring CE compliance receive a safety fence in place of the light curtain.

Important

• The combined weight of the gripper assembly and part must not exceed the robot's rated payload. Exceeding the rated payload will negatively affect motion performance and safety.

Availability
Available for order, with estimated delivery May 2026.

Caractéristiques / Spécifications techniques

• Axes: Controlled Axes: 6
• Capacities: Max Load Capacity at Wrist: 66.0 lb / 30 kg
  Max Payload: 53 lb / 24.0 kg
  Reach: 69.1 in / 1756 mm
  Repeatability: 0.0008 in / 0.020 mm
• Zero Point System: Positional Repeatability: 0.0002 in / 0.005 mm
  Clamp Force w/Air (140 psi / 9.7 bar): 4,793 lbf / 21,320 N
  Clamp Force w/Air (90 psi / 6.2 bar): 2,681 lbf / 11,925 N
  Clamp Force w/o Air: 882 lbf / 3,923 N
  Max Part Diameter: 8.3 in / 210 mm
  Max Square Part: 8.27 in x 8.27 in / 210.0 mm x 210.0 mm
  Pallet Size: 8.27 in x 8.27 in / 210 mm x 210 mm
  Pallet Weight (w/hardware): 9.0 lb / 4.1 kg
  Air Pressure Min: 100 psi / 6.9 bar
  Air Pressure Max: 160 psi / 11.0 bar
• Motion: Motion Range – J1: 360°
  Motion Range – J2: 360°
  Motion Range – J3: 540°
  Motion Range – J4: 380°
  Motion Range – J5: 360°
  Motion Range – J6: 450°
• Speeds: Max Speed: 78.7 ips / 2,000 mm/s
• General: Mounting Method: Pedestal Mount
• Dimensions - Shipping: Domestic Pallet: 104.0 in x 81.0 in x 92.0 in / 264 cm x 206 cm x 234 cm
  Export Pallet: 104.0 in x 81.0 in x 92.0 in / 264 cm x 206 cm x 234 cm
  Weight: 2900 lb / 1315.4 kg
