Towing tractor Classic HT

pushbackfor aircraftgasoline

Overview

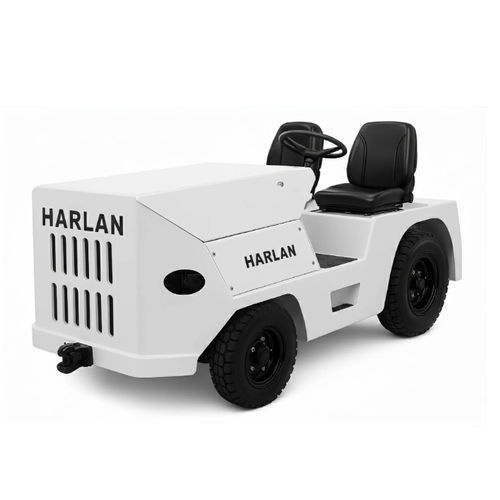

The Harlan Classic Model HT is a baggage and cargo tractor designed for airport ramp and ground support operations. Available with Tier‑rated diesel, gasoline, LPG or 80 V lithium‑ion electric powertrains, the Classic HT provides medium‑duty towing capacity with drawbar pull from 3,000 to 6,000 lb (13.3–26.7 kN). The optional front hitch package enables configuration for small‑aircraft pushback. Other factory and field options include cab assemblies, heating/defrost systems, mirrors, beacons, multiple hitch configurations and suspension‑style seats.

Standard Features

• Heavy‑duty chassis and driveline designed for airport baggage and cargo service
• Wide range of factory and aftermarket configurations: cabs, hitches, seats
• Keyless anti‑restart ignition switch for safety
• Driver and passenger seats with seatbelts
• LED lighting package: headlights, combined tail/stop and back‑up lights
• Rear‑mount E‑hitch (other hitch options available)
• LCD dashboard display for system monitoring

Available Models
HT30 — Drawbar pull 3,000 lb (13.3 kN)
HT40 — Drawbar pull 4,000 lb (17.8 kN)
HT50 — Drawbar pull 5,000 lb (22.2 kN)
HT60 — Drawbar pull 6,000 lb (26.7 kN)

Engine Options
Ford MSG425 | Kubota WG3800 | Kubota V3600 (export only) | Deutz TCD 2.2 | 80 V AC, 460 Ah lithium‑ion battery

Specifications
Length: 112.25" (2,852 mm); 120.75" (3,048 mm) with rear hitch
Width: 56" (1,422 mm)
Height: 61" (1,549 mm); 83.5" (2,121 mm) with cab
Wheelbase: 68" (1,727 mm)
Ground clearance: 6" (152 mm)
Drive axle: Harlan heavy‑duty, capacity 8,200 lb (3,719 kg)
Steer axle: Harlan heavy‑duty, 1 1/8" kingpin
Suspension: leaf‑spring
Towing coupler: E‑hitch with 1" pin (other options available)
Tires: Front 6.50 x 10; Rear LT 225/75R x 16
Transmission: Automatic industrial
Electrical: 12 V system
Cooling: Liquid‑cooled radiator with integrated transmission cooler
Steering: Power assist or hydrostatic
Brakes: Electrically actuated park brake (drum); hydraulic service brakes, dual rear disc; optional front brakes

Warranty
Each model is supported by a manufacturer warranty covering defined components and workmanship to protect customer investment and ensure operational readiness.

Technical Specifications

• Drawbar pull range: 3,000–6,000 lb (13.3–26.7 kN)
• Model variants: HT30, HT40, HT50, HT60
• Powertrain options: diesel, gasoline, LPG, 80 V AC lithium‑ion (460 Ah)
• Length: 112.25" (2,852 mm); 120.75" (3,048 mm) with rear hitch
• Width: 56" (1,422 mm)
• Height: 61" (1,549 mm); 83.5" (2,121 mm) with cab
• Wheelbase: 68" (1,727 mm)
• Ground clearance: 6" (152 mm)
• Drive axle capacity: 8,200 lb (3,719 kg)
• Suspension: leaf‑spring; steering: power assist or hydrostatic
• Towing coupler: E‑hitch with 1" pin; optional hitch configurations available
• Lighting: LED package (headlights, tail/stop, back‑up)
• Instrumentation: LCD dash display
