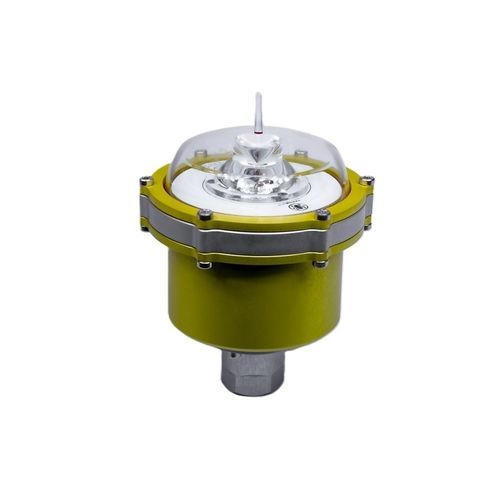

Obstruction beacon R10

warningLEDIR

Description
The R/RM obstruction beacon R10 / RIR10 provides a visual warning for tall structures to reduce the risk of aircraft collisions. Designed for industrial and aeronautical installations, it delivers configurable light intensity and mounting options for a wide range of applications.

Product overview
Manufactured entirely in our workshops, the beacon is engineered for installation on buildings, towers, cranes and antennas. Compact and serviceable, it supports rapid mounting using 1/2" sleeves for round bases or four screws for square bases. The design facilitates maintenance access and electrical connection via an M12 5-pin connector.

Available configurations

• Base: Round or Square
• Luminous intensity: 10 Cd, 32 Cd, 100 Cd
• Power supply: 12–48 Vdc or 110–240 Vac
• Communication: DALI 2 or without communication
• Light source: Red or Red / IR

Caractéristiques / spécifications techniques

• Reference: 100.2002.01
• Base: Round / Square
• Light source: Red / IR
• Technology: High-intensity LED
• Power supply: 12–48 Vdc / 110–240 Vac
• Power consumption: 8–14 W
• Connectivity: M12 5-pin connector
• Communication: DALI (DALI 2 option available)
• Multiple attribute combinations available (various bases, intensities, power supplies, communications and light source options)
