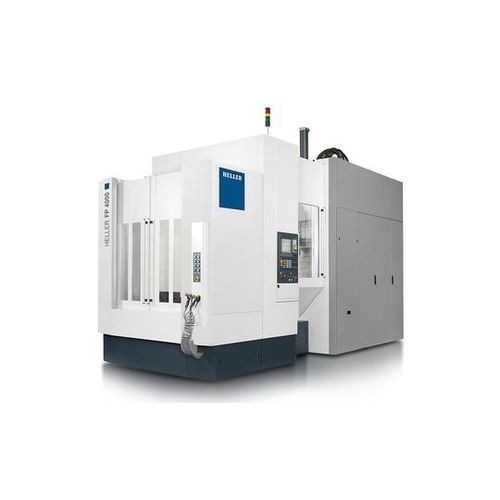

5-axis machining center F series
horizontalCNCfor aeronautics

5-axis machining center
5-axis machining center
5-axis machining center
5-axis machining center
5-axis machining center
5-axis machining center
5-axis machining center
5-axis machining center
5-axis machining center
5-axis machining center
5-axis machining center
5-axis machining center
5-axis machining center
Add to favorites
Compare this product


Characteristics

Number of axes
5-axis
Spindle orientation
horizontal
Other characteristics
CNC, for aeronautics
X travel

Min.: 800 mm
(31 in)

Max.: 1,250 mm
(49 in)

Y travel

Min.: 800 mm
(31 in)

Max.: 1,200 mm
(47 in)

Z travel

Min.: 1,045 mm
(41 in)

Max.: 1,400 mm
(55 in)

Description

Only the perfect combination of strength and lightweight creates a machine design that guarantees the best surface quality and a long tool service life. As with all HELLER machines, the main components of our F-series 5 -axis machining centres were also computed by means of the FEM method. The result is a machine bed optimised for stiffness and a weight-reduced column – that's how we guarantee a high dynamic with perfect precision. Cross-bed and travelling column in gated design high stability and damping in the flow of forces through topology-optimised structural components from cast iron thermo-symmetrical design and optimized flow of forces broad range of machining units in a robust design tool changer with two NC-axes for fast automatic tool change large range of tool magazines, chain or rack-type machines with integrated pallet changer (FP) and high payload for fast automatic pallet change machine variant with table loading (FT) available for selected sizes 5-axis kinematics with horizontal basic alignment and a 5th axis in the tool machine bed carries the X- and the Z-axis in a cross bed arrangement the machine column traverses in the X-direction and carries the machining unit machining unit traverses in the Y-direction, compactly integrated into the machine column in a stable manner rotary table traverses in the Z-direction and executes the feed movement NC rotary indexing table (B rotary axis) turns the workpiece continuously (360.000 x 0.001°) swivel head (C) or tilting head (A) – the 5th axis is in the tool (max. C 345.000 x 0.001°/ A 175.000 x 0.001°) (swivel range with optional swivel range expansion)
