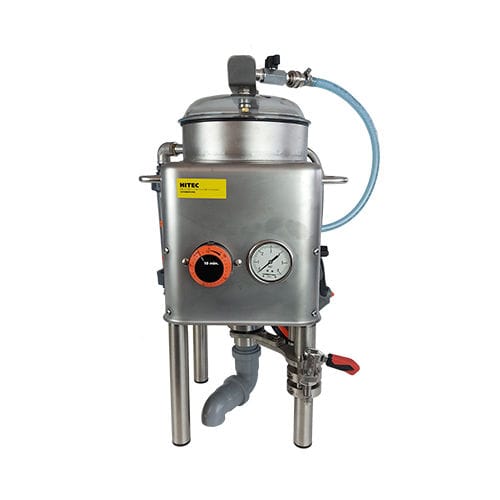

Pressure test instrument A2000

avionicsaeronautical

The HITEC Luxembourg A 2000 is the commercial/industrial scale available solution to test according ASTM D1514, ISO 1437 as well as JIS K 6218-3 This test method covers the determination of sieve residue after mechanical water flushing of for example regular untreated carbon blacks. It may not be applicable to oil-treated carbon blacks because the oil would prevent proper wetting of the black by water. The test set A 2000 is used worldwide mainly for carbons. Applications for inorganic pigments and fillers / extenders are also possible. Being a standard product, repeatability and reproducibility are better compared to self-built solutions. Key features High-quality, reliable and durable technology Measurement ranges from 0.020 mm to 0.8 mm Simple handling Free flushing nozzle in the glass lid for funnel rinsing Handy sieves (diameter 50 mm, weight from 5 g) available with stainless steel or plastic ring Simplest sieve positioning and removal Absolute reproducibility of screening results No dust forming due to sealed construction Easy maintenance Space saving construction Low noise level Technical Data* Housing: stainless steel Analysis container: stainless steel Container cover/lid: glass Pressure reducing valve Brass, adjustable: 2 – 5 bar (standard setting water pressure 2 bar – adjusted acc. to ASTM)
