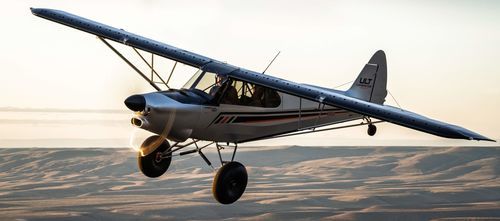

Recreational aircraft Carbon Cub ULT

single-engineturboprop2-person

Overview

The Carbon Cub ULT represents the next evolution of lightweight backcountry aviation, combining the performance of the Carbon Cub platform with the refinement and operational simplicity of a regenerative turboprop. Developed for the MOSAAC era, the ULT offers recreational pilots turbine operation with retained short-field performance and responsive handling.

Propulsion & Operation

The aircraft is powered by the TurboTech TP-R90 (with TP-R150 option) regenerative turboprop engine featuring dual FADEC (Full Authority Digital Engine Control). Key operating features include push-button start, single-lever power management, automatic control of fuel flow, ignition, temperatures and propeller, and turbine smoothness with simplified pilot workload. The regenerative turbine is engineered to deliver fuel efficiency comparable to modern gasoline engines while maintaining turbine durability and reliability.

Design & Capability

The ULT pairs lightweight composite construction, aerodynamic STOL refinements and proven handling to deliver exceptional backcountry capability. As the first U.S.-manufactured turboprop eligible under MOSAIC to be flown by Sport Pilots, the ULT provides an accessible turbine experience for recreational operations while preserving short takeoff and landing performance.

Availability

Customer deposits are being accepted; initial deliveries are expected in 2027.

Highlighted features

• TurboTech TP-R90 / R150 engine with dual FADEC
• Variable-pitch propeller
• Single-engine land & sea capability
• Lightweight composite construction and aerodynamic STOL refinements
• Simplified turbine operation: push-button start and single-lever power
• MOSAIC-eligible: Sport Pilot operability in U.S. under MOSAIC rules

Technical specifications

• Certification: Light Sport; Factory Builder Assist (E-AB)
• Type: Single engine land & sea
• Crew: 2
• Engine: TurboTech TP-R90 / R150
• Propeller: Variable Pitch
• Length: 23 ft 3 in
• Height: 8 ft 4 in
• Wingspan: 34 ft 3 in
• Wing Area: 179 sq ft
• Cabin Width: 30" @ pilot position
• Cabin Height: 52" @ pilot position
• Empty Weight: 880 lbs (estimated)
• Gross Weight: 1,865 lbs
• Useful Load: 985 lbs (estimated)
• Fuel: 44 gallons
• Cruise Speed: 130+ mph (estimated)
• Stall Speed: 32 mph
• Endurance: 5.2 hrs (estimated)
• Range: 682 miles (estimated)
• Takeoff Distance: 50 ft* (assumes optimal conditions)
• Landing Distance: 90 ft* (assumes optimal conditions)

*Performance numbers assume optimal conditions; actual numbers will vary. Fuel consumption and speed will vary with power settings.
