Landing gear trolley LGX MultiSystem

palletfor aircrafthangar

Overview

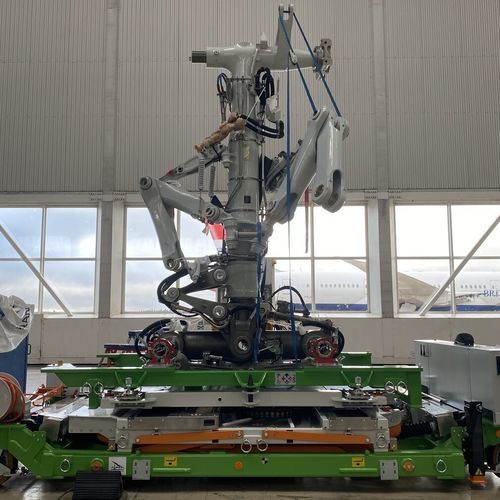

LGX MultiSystem is RH Aero Systems' pallet-shippable trolley designed for ground-based removal and installation of main landing gears. Its fully electric X/Y/Z drive, integrated digital twin and single-operator HMI transform a crane-dependent, high-risk procedure into a repeatable, ground-level operation that reduces downtime and protects personnel and airframe.

Key benefits

• Save 16+ hours per main-gear change by keeping side and drag stays fitted and removing extensive rigging and preparation.
• Ground-based, all-electric control — no overhead cranes or on-wing lifting; two engineers operate via an 8" HMI touchscreen and joysticks for precise, millimetre-accurate moves.
• Universal coverage for wide-body fleets with adapter set: supports A330/A340, A350-900/‑1000, A380, 777 (including X variants), and 787 families.

Details

• 8" touchscreen + three joysticks with wired or wireless operation for precise positioning.
• Tool-Centre-Point logic lets the operator set a fixed pivot so the gear remains controlled without drift.
• Digital twin provides VR training, live load-cell readouts and remote diagnostics.
• IP54 / CE / UL rated electronics suitable for indoor hangar or apron use.
• Ships worldwide on a single ULD pallet, avoiding exceptional transport requirements.

Product Scope
Airbus | Boeing
A330 family | 777-200 / -300
A340 | 777-8 / -9 (X)
A350-900 / -1000 | 787-8 / -9 / -10
A380-800
Additional adapter validations in progress.

Technical Data — Movements
Longitudinal (X-axis): Unlimited
Lift (Z-axis): 1,550 mm / 6.1 in
Transverse (Y-axis): ±200 mm / ±7.87 in
Yaw: 24° (+/-12°)
Pitch: 3° nose down, 15° nose up (+2° extra)

Technical Data — Dimensions
Width: 2,400 mm / 98.5 in
Length: 4,900 mm / 193 in
Height (min.): 1,100 mm / 43 in

Technical Data — Capacity and Weight
Load Capacity: 4,400 kg / 9,700 lbs
Weight (approx.): ~6,000 kg / 13,228 lbs

Technical Data — Drive
Electrical driven:
3/PE AC 380-420 V 50 Hz
3/PE AC 440-480 V 60 Hz

Traditional Process (for comparison)

• Overhead sling/crane method requiring extensive rig-up.
• Wing top-skin removal often required.
• Limited controlled movement, higher risk of damage to gear and airframe.
• High manpower and tooling demands to control movements.

LGX MultiSystem Process

• Ground-based method eliminating the need for overhead cranes in most operations.
• Often avoids wing top-skin removal on composite aircraft when LGX-compatible actuator R/I adapter is available.
• Gear remains in a fully controlled position throughout operations, reducing unintended movement risk.
• Reduced manpower: typically one tool operator plus one trunnion pin R/I.

Customer story / Business impact (summary)
Field deployments at maintenance centres have shown double-digit hour reductions in downtime, elimination of crane rig-up, real-time load-cell monitoring to keep bearing loads within AMM limits, preservation of side- and drag-stay assemblies, faster return-to-service and lower labour and tooling overheads.

Technical specifications

• Model: LGX MultiSystem
• Brand: RH Aero Systems
• Operation: Ground-based, fully electric X/Y/Z drive
• Control: 8" HMI touchscreen + three joysticks (wired or wireless)
• Tool-Centre-Point logic for fixed pivot control
• Digital twin for training, diagnostics and live load-cell readouts
• Electronics rating: IP54, CE and UL compliant
• Shipping: Pallet-shippable on single ULD pallet
• Movements — Lift: 1,550 mm; Transverse: ±200 mm; Yaw: ±12°; Pitch: -3° to +15° (+2° extra)
• Dimensions — W: 2,400 mm; L: 4,900 mm; H (min): 1,100 mm
• Load capacity: 4,400 kg (9,700 lbs)
• Approx. unit weight: ~6,000 kg (13,228 lbs)
• Electrical supply: 3/PE AC 380-420 V 50 Hz or 3/PE AC 440-480 V 60 Hz
