PCB connector HGM
for aircraftSocketstraight

PCB connector
PCB connector
PCB connector
PCB connector
PCB connector
PCB connector
PCB connector
Add to favorites
Compare this product


for aircraft
straight, right-angle
Connection type
crimp, male-female, dip solder
Other characteristics
MiL, four-row, double-row, three-row

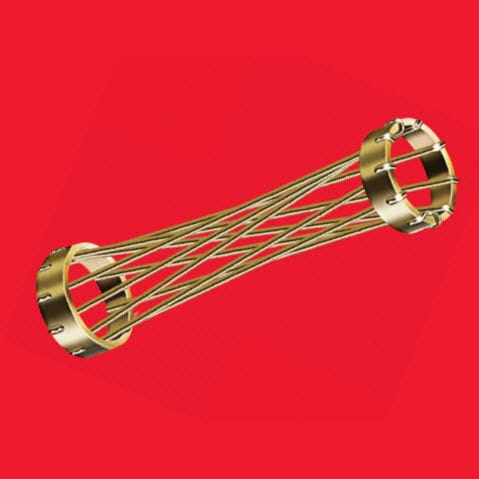

The HYPERBOLOID contact is an advanced design that satisfi es performance requirements previously considered impossible. Radically different in concept, it is used in connectors having the highest standards of performance. The distinguishing feature of the HYPERBOLOID socket is the hyper-boloid-shaped sleeve formed by straight wires strung at an angle to the longitudinal axis. Viewed from the side, you see a curve defi ned by a series of apparent short straight line segments which are tangent lines to points along a hyperbolic curve. This geometry provides for a design which has a decreasing circumscribed circle when viewed from the entry. It begins larger than the pin acceptance diameter and is less than this same diameter at the center. When the pin is inserted into this sleeve, the wires stretch, well within elastic limits, to accommodate it. In so doing, the wires wrap themselves around the pin providing a number of continuous line contact paths. The illustration below will assist in visualization.
