Performance testing machine R6000
for the aerospace industry

performance testing machine
performance testing machine
Add to favorites
Compare this product


Characteristics

Test type
performance
Other characteristics
for the aerospace industry

Description

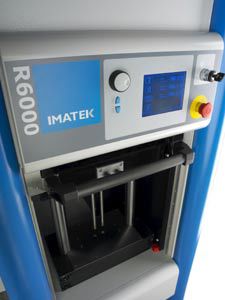

The R6000 from Imatek is a laboratory grade twin-bore capillary rheometer. In conjunction with the RheoSolve software package it enables you to rapidly make high accuracy rheological measurements on a wide range of materials Key features: High quality instrumentation Robust, reliable design High throughput Low cost of ownership CE-approved safety features Wide range of optional equipment World-class analysis software Imatek support Type 875W brushless motor driving recirculating ball screw Feedback 10,000 pulse encoder giving 0.02µm resolution Range 0 to 50kN drive force 0.01mm/min to 500mm/min speed 50kN/500mm/min combination possible Drive modes Constant speed 0.01mm/min to 500mm/min Constant pressure 1% full scale to 95% full scale Constant crosshead force 2kN to 45kN Type Three zone measurement and control Sensors Platinum resistance thermometers to DIN 43760 Accuracy ±0.5°C Uniformity ±1.5°C throughout both barrel bores
