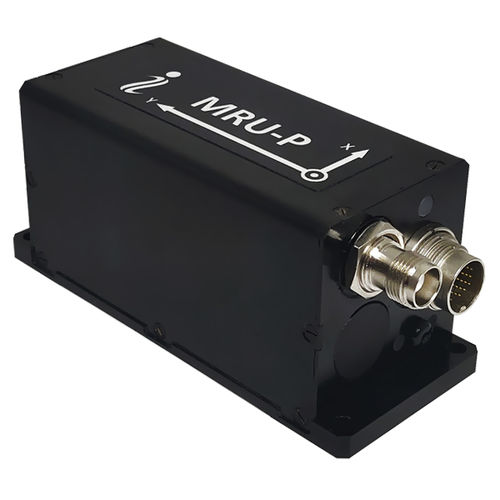

IMU inertial system MRU-P

AHRSINSMEMS

• ABS Certification, affordable price • IP-67 sealed or Subsea version • 5% / 5 cm Heave accuracy • up to 0.01 deg Pitch and Roll accuracy • 40 cm DGPS or 1 cm RTK position • 0.03 m/sec Velocity accuracy • 0.005 m/sec2 Acceleration accuracy • 0.0002 deg/sec Angular rate accuracy • NMEA 0183 and TSS1 output data format • Kongsberg/Seatex, SMC & Teledyne data formats* Inertial Labs has developed Motion Reference Units (MRU) to meet requirements from marine and hydrographic applications. MRU is enhanced, high-performance strapdown Motion Sensor, that determines Pitch & Roll, Heave, Sway, Surge, Accelerations, Angular rates, Heading, Velocity and Positions for any device on which it is mounted. The Inertial Labs Motion Reference Units utilizes solid state 3-axes each of precision accelerometers, magnetometers, gyroscopes and barometric sensors to provide accurate Heave, Sway, Surge, Pitch and Roll of the device under measure. Integration of very low noise gyroscopes output provides high frequency, real-time measurement of the Vessel, Ships, Helidecks, ROV, Marine antennas, Cranes rotation about all three rotational axes. Through a combination of proven sector expertise and a continued investment in technological innovation, Inertial Labs delivers the optimum balance of price and performance ratio solutions for its customers. KEY FEATURES AND FUNCTIONALITY ➢ Kongsberg/Seatex, Teledyne and SMC data formats ➢ State-of-the-art algorithms for Survey, Vessels, Ships, Active Heave Compensators, Cranes, Helideck, ROV, AUV, DPS, Buoys, Echo Sounders, Offshore Platforms ➢ 0.02 deg RMS Pitch & Roll dynamic accuracy ➢ 5% or 5 cm RMS (whichever is greater) Heave accuracy
