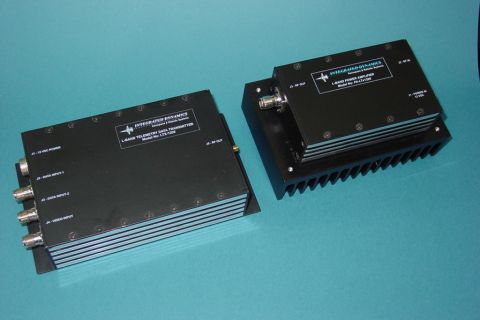

Frequency range 1200 - 1300 MHz
Frequency Stability -0.0025%
Minimum Output Power 2 - 4 Watts .
VSWR < 1.5:1
Spectral Purity Spurious rejection batter
than - 55dbW
MODULATION CHARACTERISTICS
Type True FM
Frequency Response 10 Hz to 10 MHz
Input Impedance 50 Ohms
Frequency Deviation +/- 4 MHz
Deviation Sensitivity +/- 4 MHz / V.P.P +/- 10%
Linearity Differential Gain
<2% Phase <2%
Incidental Frequency Modulation <10 KHz RMS
POWER REQUIREMENTS
Input Voltage 12 – 14 VDC reverse
polarity protection
Input Current 1.0 -1.5 Amperes
Isolation Power / Modulation returns
grounded to case
ENVIRONMENTAL CHARACTERISTICS
Temperature -40° to +80°C
Vibration 20 g peak - 3 Axes
Acceleration 80 g - 3 Axes
Shock 100 g – half sine 11 ms - 3 Axes
Relative Humidity 95%
Low Pressure 1/1000000 mBar
Electromagnetic Compatibility MIL-STD 461A-462-463
MECHANICAL CHARACTERISTICS
Dimensions Refer to drawing
Weight 1500 gm +/- 50 gms
Pin Connections Refer to drawing
Connectors Refer to drawing
