Drone simulator SkyRF® Generator

for research and developmentFlight Training Device

Overview

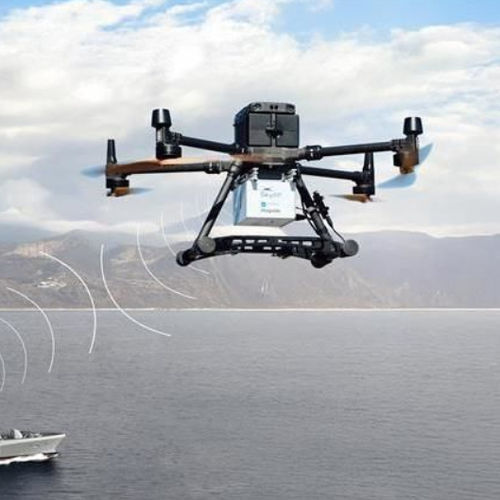

The SkyRF® Generator is an RPAS-based RF target and scenario generator designed to produce airborne virtual targets for IFF (Identification Friend or Foe) and Primary Surveillance Radar (PSR) testing and certification. It enables on-altitude target generation and scenario simulation, reducing dependence on complex ground-based setups and offering flexible test configurations for CNS (Communication, Navigation, Surveillance) measurements.

Key features

• On-altitude target generation and scenario simulation via RPAS
• SSR simulation in Modes 1, 2, 3/A and C with transponder and interrogator functions
• Optional transponder module supporting Mode S and Mode 5
• Designed to support IFF certification in line with AIMS (Mode 5)
• Configurable 360° dynamic target for PSR sensor alignment
• Adjustable radar cross section (RCS), Doppler shift and range
• Missile and ballistic-trajectory target simulation with configurable velocity, Doppler and RCS
• RF-level signal transmission enabling radars to detect and track virtual targets

Applications

• IFF system certification and Mode 5 / AIMS-compliant testing
• PSR sensor alignment and verification (runway/touchdown assessments)
• Combat Management System testing and validation
• Counter-battery and missile defense radar testing using simulated ballistic trajectories

Technical capabilities (summary)

• SSR Modes supported: 1, 2, 3/A, C (transponder and interrogator)
• Optional transponder for Mode S and Mode 5 simulation
• Mode 5 capability to support AIMS IFF certification processes
• Dynamic 360° target generation with configurable Doppler, RCS and range for PSR alignment
• RF-level target simulation including configurable velocity and Doppler profiles for ballistic-like trajectories

Technical specifications

• Product type: RPAS-based RF target and scenario generator (SkyRF® Generator configuration)
• Supported SSR modes: Modes 1, 2, 3/A, C; optional Mode S and Mode 5 with transponder module
• Compliance target: Mode 5 simulation designed to support AIMS IFF certification
• PSR alignment: 360° dynamic target with configurable Doppler, RCS and range
• Missile/ballistic simulation: configurable RCS, Doppler shift and velocity along realistic trajectories
• Signal output: RF-level transmissions for radar detection and tracking of virtual targets
• Deliverables: product brochure (PDF) and product animation video available
