0 - 1000hp turboshaft PRO XI

0 - 100kgfor drones

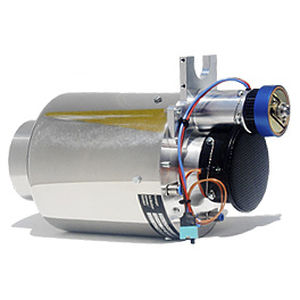

Turboshaft Engine PRO XI Universal Turbine Motor, Industrial Version Stainless steel casing 5-axis CNC milled superalloy turbine wheel Brushless Starter/Generator 14 V / 10 Amps 10,6 kW at 20.000 rpm at the output shaft Clutch bell with spur gear, 20 teeth, Modul 1,5 Length 300 mm, Width 141 mm, 3,6 kg / 8 lbs. Mounting flange width 60mm Basic version lubrication from 5% oil component in fuel The optional dry sump oil system consists of the following components: Combined Oil Tank/Filter/Air Separator Two Stage Pump Heat Exchanger
